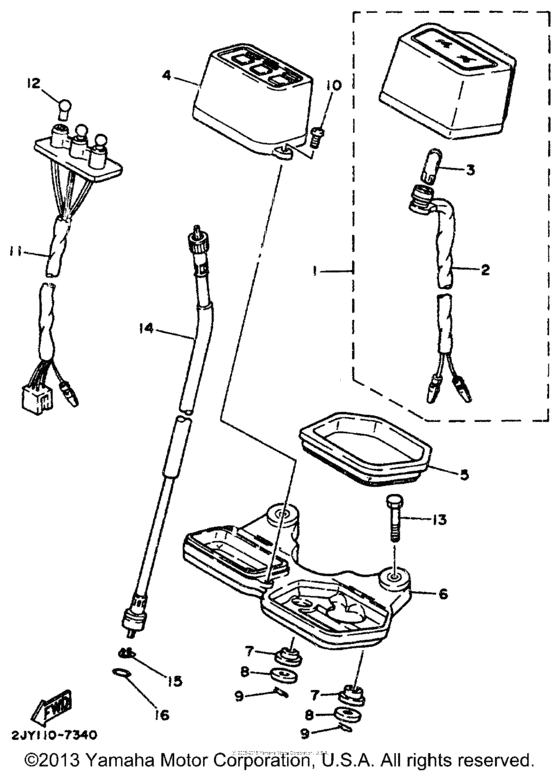

Meter Diagram Yamaha TW200 TRAILWAY
- Year
- 1998
- Sales region
- USA
- Базовая модель
- TW200KC
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2JX-83510-A0-00
Speedometer Assembly
|
2JX-83510-A0-00 |
— | ||
|
2
|
2
2JX-83536-A0-00
Socket Cord Assy
|
2JX-83536-A0-00 |
— | ||
| replacement | |||||
|
2
|
2
5E2-83509-20-00 Socket Cord Assy |
5E2-83509-20-00 |
from US $16.92 |
||
|
3
|
3
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W T10 |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
3
|
3
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W T10 |
4G1-84744-00-XX |
— | ||
|
4
|
4
15A-83568-00-00 Pilot Box, Upper |
15A-83568-00-00 |
from US $18.76 |
||
|
5
|
5
5Y1-83513-00-00 Damper |
5Y1-83513-00-00 |
from US $18.70 |
||
|
6
|
6
15A-83519-00-00 Bracket, Meter |
15A-83519-00-00 |
from US $28.24 |
||
|
7
|
7
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
7
|
7
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $3.35 |
||
|
8
|
8
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.13 |
||
|
9
|
9
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.80 |
||
|
10
|
10
90164-04008-00 Screw, Tapping |
90164-04008-00 |
from US $2.24 |
||
|
11
|
11
15A-83509-00-00 Socket Cord Assy |
15A-83509-00-00 |
from US $30.82 |
||
| replacement | |||||
|
11
|
11
15A-83509-01-00 Socket Cord Assy |
15A-83509-01-00 |
US $29.23 |
||
|
12
|
12
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.14 |
||
| replacement | |||||
|
12
|
12
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
13
|
13
95807-06040-00 Bolt, Flange |
95807-06040-00 |
from US $1.05 |
||
| replacement | |||||
|
13
|
13
95817-06040-00 Bolt, Flange |
95817-06040-00 |
from US $1.05 |
||
|
14
|
14
3R9-83550-00-00 Speedometer Cable AsAS |
3R9-83550-00-00 |
from US $28.42 |
||
| replacement | |||||
|
14
|
14
1JN-83550-02-00 Speedometer Cable AssyAS |
1JN-83550-02-00 |
from US $18.86 |
||
|
15
|
15
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $2.54 |
||
|
16
|
16
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
16
|
16
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.13 |
||
