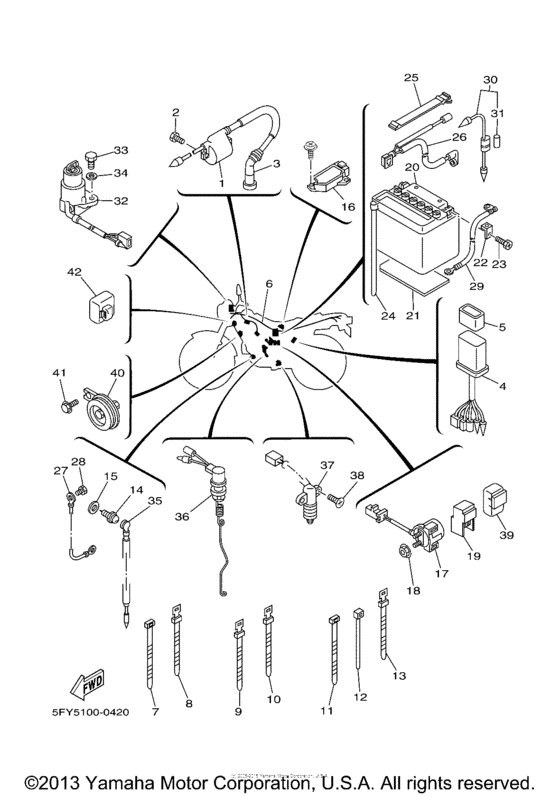

Electrical (1) Diagram Yamaha TW200 TRAILWAY
- Year
- 2000
- Sales region
- USA
- Базовая модель
- TW200MC
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KJ-82310-10-00
Ignition Coil Assy
|
4KJ-82310-10-00 |
— | ||
| replacements | |||||
|
1
|
1
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
1
|
1
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
1
|
1
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
1
|
1
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
1
|
1
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
1
|
1
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
2
|
2
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
2
|
2
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
3
|
3
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
3
|
3
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
3
|
3
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
|
4
|
4
2YG-85540-10-00
C.d.i. Unit Assembly
|
2YG-85540-10-00 |
— | ||
|
5
|
5
34X-85546-00-00
Band
|
34X-85546-00-00 |
— | ||
|
6
|
6
2YG-82590-10-00
Wire Harness Assembly
|
2YG-82590-10-00 |
— | ||
|
7
|
7
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
8
|
8
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
9
|
9
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
10
|
10
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
12
|
12
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
13
|
13
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
14
|
14
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
15
|
15
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
16
|
16
47X-81960-A3-00 Rectifier & Regulator Assembly |
47X-81960-A3-00 |
from US $220.41 |
||
|
17
|
17
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
17
|
17
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
18
|
18
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
19
|
19
1RL-81950-92-00 Relay Assy (1Rl-92)1RL-92 |
1RL-81950-92-00 |
from US $57.75 |
||
| replacements | |||||
|
19
|
19
12R-81950-01-00 Relay Assy (12R-01)1RL-92 |
12R-81950-01-00 |
from US $57.75 |
||
|
19
|
19
12R-81950-02-00 RELAY ASSY1RL-92 |
12R-81950-02-00 |
from US $53.20 |
||
|
20
|
20
1JE-82110-61-00
Gm7Cz3D Gs Battery
GS BATTERY |
1JE-82110-61-00 |
— | ||
| replacements | |||||
|
20
|
20
GM7-CZ3D0-00-00
PIPE 6
GS BATTERY |
GM7-CZ3D0-00-00 |
— | ||
|
20
|
20
907-9EY00-01-00
Battery (Yb7C-A)
GS BATTERY |
907-9EY00-01-00 |
— | ||
|
20
|
20
YB7-CA000-00-00 Bat Yb7C-A YuGS BATTERY |
YB7-CA000-00-00 |
US $106.63 |
||
|
21
|
21
51Y-82122-00-00 Seat, Battery |
51Y-82122-00-00 |
from US $2.69 |
||
|
22
|
22
2JX-82103-00-00 Terminal 1 |
2JX-82103-00-00 |
from US $24.09 |
||
|
23
|
23
90153-06032-00 Screw, Hexagon |
90153-06032-00 |
from US $3.47 |
||
| replacement | |||||
|
23
|
23
90153-06055-00
Screw, Hexagon
|
90153-06055-00 |
— | ||
|
24
|
24
90445-082F3-00 Hose (L1500) |
90445-082F3-00 |
from US $10.91 |
||
| replacement | |||||
|
24
|
24
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
25
|
25
18G-82131-00-00 Band, Battery |
18G-82131-00-00 |
US $7.37 |
||
| replacement | |||||
|
25
|
25
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
26
|
26
2JX-82115-00-00
Wire, Plus Lead
|
2JX-82115-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
5H0-82116-00-00 Wire, Minus Lead |
5H0-82116-00-00 |
US $14.99 |
||
|
28
|
28
90109-06557-00 Bolt |
90109-06557-00 |
from US $2.41 |
||
|
29
|
29
2JX-82116-00-00 Wire, Minus Lead |
2JX-82116-00-00 |
from US $7.93 |
||
|
30
|
30
2TV-82150-02-00 Fuse Holder Assembly |
2TV-82150-02-00 |
from US $14.45 |
||
|
31
|
31
4X7-82151-00-00 Fuse (15A)15A |
4X7-82151-00-00 |
from US $4.96 |
||
|
32
|
32
2GK-82501-01-00
Main Switch Steering Lock
|
2GK-82501-01-00 |
— | ||
|
33
|
33
97007-06016-00 Bolt |
97007-06016-00 |
US $1.21 |
||
| replacement | |||||
|
33
|
33
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
34
|
34
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
35
|
35
2JX-82541-00-00 Wire, Lead |
2JX-82541-00-00 |
US $19.87 |
||
|
36
|
36
2JX-82530-02-00 Stop Switch Assy |
2JX-82530-02-00 |
from US $22.53 |
||
| replacements | |||||
|
36
|
36
5VC-82530-00-00 Stop Switch Assy |
5VC-82530-00-00 |
from US $22.53 |
||
|
36
|
36
5VC-82530-01-00 Stop Switch Assy |
5VC-82530-01-00 |
US $26.73 |
||
|
37
|
37
1VJ-82566-00-00 Switch, Side Stand |
1VJ-82566-00-00 |
US $130.64 |
||
|
38
|
38
90152-05021-00 Screw, Flat Head |
90152-05021-00 |
from US $1.42 |
||
| replacement | |||||
|
38
|
38
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
39
|
39
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $35.70 |
||
|
40
|
40
1HX-83371-00-00 Horn |
1HX-83371-00-00 |
from US $36.16 |
||
| replacement | |||||
|
40
|
40
4LR-83371-11-00 Horn |
4LR-83371-11-00 |
from US $51.81 |
||
|
41
|
41
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
41
|
41
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
42
|
42
30X-83350-20-00
Flasher Relay Assy
|
30X-83350-20-00 |
— | ||
