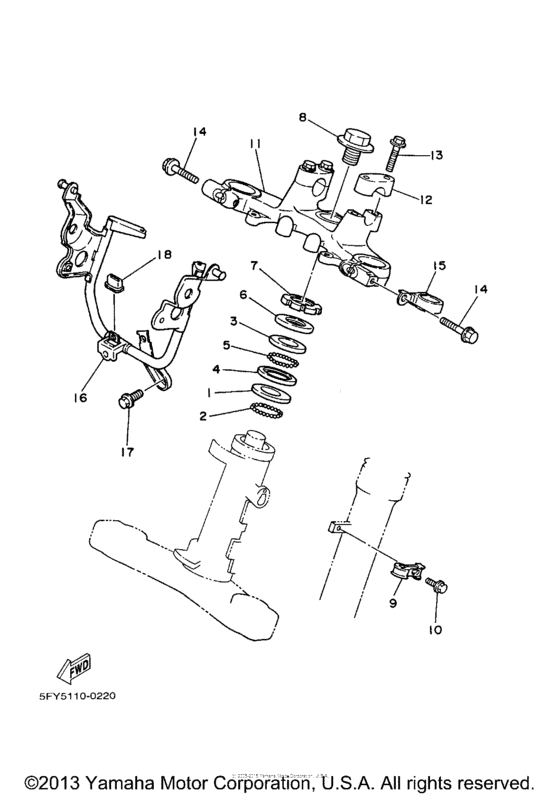

Steering Diagram Yamaha TW200 TRAILWAY
- Year
- 2000
- Sales region
- USA
- Базовая модель
- TW200MC
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
1
|
1
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
2
|
2
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
3
|
3
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
3
|
3
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
4
|
4
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
4
|
4
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
5
|
5
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
6
|
6
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
7
|
7
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
7
|
7
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
7
|
7
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
8
|
8
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
9
|
9
3Y1-23319-00-00 Wire, Holder 2 |
3Y1-23319-00-00 |
from US $5.97 |
||
|
10
|
10
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
11
|
11
2JX-23435-00-35 Crown, HandleSL |
2JX-23435-00-35 |
from US $103.21 |
||
| replacement | |||||
|
11
|
11
2JX-23435-10-35 SL |
2JX-23435-10-35 |
from US $103.21 |
||
|
12
|
12
1E6-23441-10-35 Holder, Handle UpperSL |
1E6-23441-10-35 |
from US $17.85 |
||
|
13
|
13
95824-08035-00 Bolt, Flange |
95824-08035-00 |
from US $2.91 |
||
| replacement | |||||
|
13
|
13
95814-08035-00 Bolt, Flange(4Fm) |
95814-08035-00 |
from US $2.69 |
||
|
14
|
14
95027-08050-00 Bolt, Flange |
95027-08050-00 |
from US $1.70 |
||
|
15
|
15
3R1-23317-00-00
Holder, Cable
|
3R1-23317-00-00 |
— | ||
|
16
|
16
2JX-23174-00-00
Stay, Headlight
|
2JX-23174-00-00 |
— | ||
|
17
|
17
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
18
|
18
30X-23445-00-00 Damper |
30X-23445-00-00 |
from US $8.74 |
||
