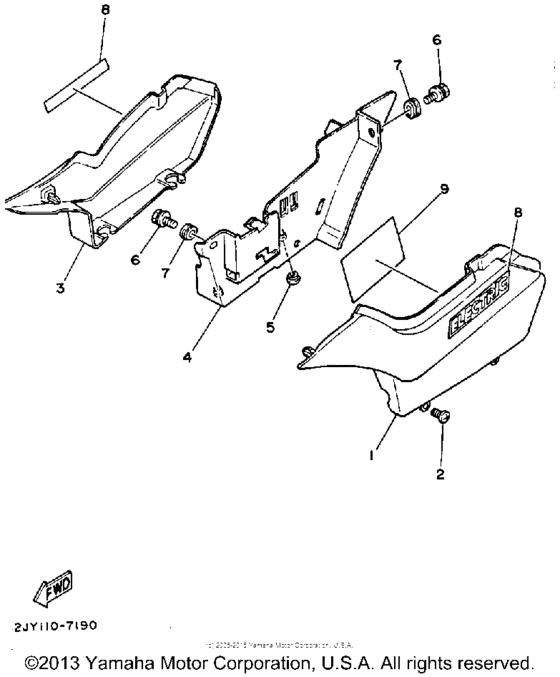

Side cover Diagram Yamaha TW200 TRAILWAY
- Year
- 1989
- Sales region
- USA
- Базовая модель
- TW200W
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2YG-21711-00-98
Cover, Side 1
UR YAMAHA BLACK |
2YG-21711-00-98 |
— | ||
|
1
|
1
3AW-21711-00-98
Cover, Side 1
UR ROBIN BLUE |
3AW-21711-00-98 |
— | ||
|
2
|
2
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.81 |
||
|
3
|
3
2YG-21721-00-98
Cover, Side 2
UR YAMAHA BLACK |
2YG-21721-00-98 |
— | ||
|
3
|
3
3AW-21721-00-98
Cover, Side 2
UR ROBIN BLUE |
3AW-21721-00-98 |
— | ||
|
4
|
4
2JX-2177A-00-00 Box |
2JX-2177A-00-00 |
US $55.22 |
||
|
5
|
5
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
5
|
5
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.36 |
||
|
6
|
6
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
6
|
6
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
6
|
6
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
7
|
7
90480-01401-00 Grommet (41Y)41Y |
90480-01401-00 |
from US $3.05 |
||
|
8
|
8
2JX-21781-30-00
Emblem 1
|
2JX-21781-30-00 |
— | ||
|
9
|
9
3AW-2179V-00-00 Plate, Epa U49U49 UR NON-CALIF. |
3AW-2179V-00-00 |
US $22.45 |
||
|
9
|
9
3AW-2179N-00-00 Plate, Epa CalUR CA. |
3AW-2179N-00-00 |
US $6.59 |
||
