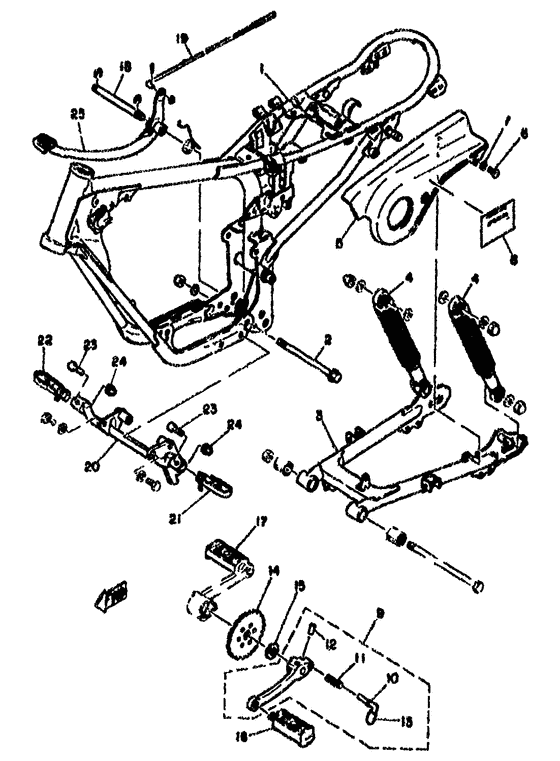

Frame Diagram Yamaha TY
- Year
- 1978
- Model code
- 1F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- TY50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
538-21110-01-35
Frame Comp
|
538-21110-01-35 |
— | ||
|
2
|
2
95811-08155-00
Bolt, Flange
|
95811-08155-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
1G7-22110-10-35
Rear Arm Comp
|
1G7-22110-10-35 |
— | ||
|
4
|
4
492-22210-00-00
Shock Absorber Assy, Rear
|
492-22210-00-00 |
— | ||
| replacement | |||||
|
4
|
4
1N0-22210-00-00
Shk/abs Assembly, Rear
|
1N0-22210-00-00 |
— | ||
|
5
|
5
538-22311-00-35
Case, Chain
|
538-22311-00-35 |
— | ||
|
6
|
6
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
6
|
6
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
6
|
6
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
7
|
7
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
470-15435-00-00
Emblem
|
470-15435-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
1F1-27810-00-00
Crank, Pedal
|
1F1-27810-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
1F1-27815-00-00
Lever, Crank Pedal
|
1F1-27815-00-00 |
— | ||
|
11
|
11
90501-08460-00
Spring, Compression
|
90501-08460-00 |
— | ||
|
12
|
12
91609-30014-00 Pin, Spring |
91609-30014-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
91690-30014-00 Pin, Spring |
91690-30014-00 |
from US $1.50 |
||
|
13
|
13
283-17496-00-00
Knob, Trans Shift
|
283-17496-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
1F1-27828-00-00
Sprocket, Pedal
|
1F1-27828-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
92901-16200-00 Washer, PlainWasher,plain 100101~199999 |
92901-16200-00 |
from US $4.25 |
||
| replacement | |||||
|
15
|
15
92990-16200-00 Washer, Plain |
92990-16200-00 |
from US $4.08 |
||
|
16
|
16
1F1-27850-00-00
Pedal Assembly L
|
1F1-27850-00-00 |
— | ||
|
17
|
17
1F1-27860-00-00 Pedal Assembly RPedal ass`y,right 100101~199999 |
1F1-27860-00-00 |
US $55.71 |
||
|
18
|
18
462-27212-00-00
Shaft, Brake Pedal
|
462-27212-00-00 |
— | ||
| replacement | |||||
|
18
|
18
2A3-27212-00-00
Shaft, Brake Pedal
|
2A3-27212-00-00 |
— | ||
|
19
|
19
180-27231-01-00 Rod, Brake |
180-27231-01-00 |
from US $19.01 |
||
|
20
|
20
538-27451-00-00
Footrest
|
538-27451-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
538-27411-00-35
Footrest 1
|
538-27411-00-35 |
— | ||
|
22
|
22
538-27421-00-35
Footrest 2
|
538-27421-00-35 |
— | ||
| replacement | |||||
|
22
|
22
462-27421-00-33
Footrest 2
|
462-27421-00-33 |
— | ||
|
23
|
23
97321-08030-00 Bolt |
97321-08030-00 |
from US $2.83 |
||
| replacements | |||||
|
23
|
23
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
23
|
23
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
23
|
23
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
24
|
24
90185-08055-00 Nut, Self-Locking |
90185-08055-00 |
from US $1.35 |
||
| replacement | |||||
|
24
|
24
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
25
|
25
538-27211-00-35
Pedal, Brake
|
538-27211-00-35 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
