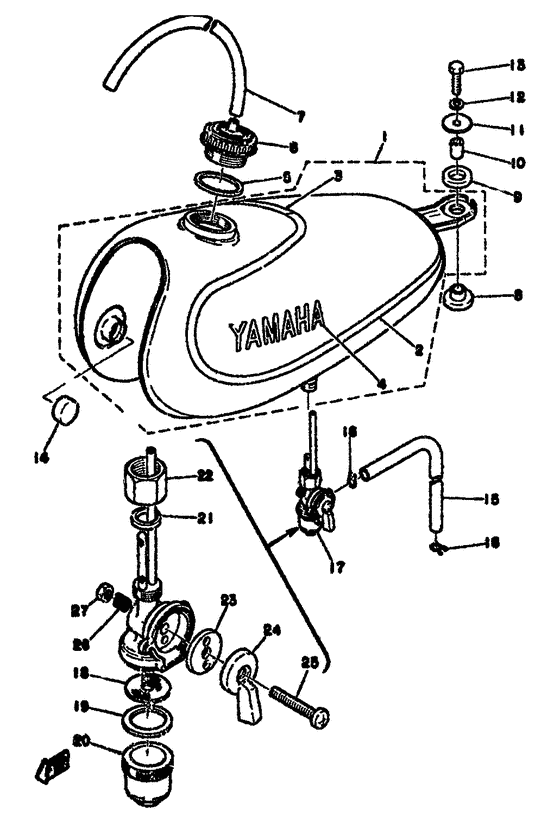

Fuel tank Diagram Yamaha TY
- Year
- 1978
- Model code
- 1F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- TY50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
538-24110-00-01
Fuel Tank Comp
|
538-24110-00-01 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
538-24110-00-02
Fuel Tank Comp
|
538-24110-00-02 |
— | ||
|
1
|
1
538-24110-00-04
Fuel Tank Comp
|
538-24110-00-04 |
— | ||
|
1
|
1
538-24110-00-07
Fuel Tank Comp
|
538-24110-00-07 |
— | ||
|
2
|
2
451-24244-10-00
Graphic, Fuel Tnk 1
|
451-24244-10-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
451-24245-10-00
Graphic, Fuel Tnk 2
|
451-24245-10-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
322-24161-00-00
Emblem, Yamaha
|
322-24161-00-00 |
— | ||
| replacements | |||||
|
4
|
4
99221-00140-00 Emblem, Yamaha |
99221-00140-00 |
from US $5.80 |
||
|
4
|
4
992-41001-40-00 Emblem, Yamaha |
992-41001-40-00 |
from US $15.73 |
||
|
5
|
5
90430-35122-00 Gasket |
90430-35122-00 |
from US $4.68 |
||
|
6
|
6
322-24611-02-00 Body, Cap |
322-24611-02-00 |
from US $48.08 |
||
|
7
|
7
90445-09113-00 Hose (L675) |
90445-09113-00 |
from US $19.84 |
||
| replacements | |||||
|
7
|
7
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
7
|
7
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.72 |
||
|
8
|
8
90480-14088-00 Grommet |
90480-14088-00 |
from US $1.98 |
||
|
9
|
9
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
10
|
10
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
10
|
10
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
11
|
11
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.66 |
||
|
12
|
12
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
14
|
14
122-24181-00-00 Damper, Locating 1 |
122-24181-00-00 |
from US $3.51 |
||
|
15
|
15
90445-09066-00 Hose (L420) |
90445-09066-00 |
from US $6.52 |
||
| replacement | |||||
|
15
|
15
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
16
|
16
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
17
|
17
367-24500-03-00 Fuel Cock Assy 1 |
367-24500-03-00 |
US $126.83 |
||
| replacement | |||||
|
17
|
17
367-24500-04-00 Fuel Cock Assembly 1 |
367-24500-04-00 |
from US $122.26 |
||
|
18
|
18
355-24515-00-00
Net, Filter 2
|
355-24515-00-00 |
— | ||
|
19
|
19
102-24522-01-00 Gasket |
102-24522-01-00 |
from US $5.24 |
||
| replacement | |||||
|
19
|
19
102-24522-02-00 Gasket |
102-24522-02-00 |
US $7.88 |
||
|
20
|
20
122-24521-00-00
Cup, Filter
|
122-24521-00-00 |
— | ||
|
21
|
21
122-24532-00-00 Gasket |
122-24532-00-00 |
from US $5.67 |
||
|
22
|
22
603-24531-01-00
Nut
|
603-24531-01-00 |
— | ||
|
23
|
23
355-24523-00-00 Valve |
355-24523-00-00 |
from US $12.33 |
||
|
24
|
24
355-24524-01-00
Lever, Cock
|
355-24524-01-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
355-24535-00-00
Screw, Lever Fitting
|
355-24535-00-00 |
— | ||
| replacements | |||||
|
25
|
25
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
355-24518-00-00
Washer, Wave
|
355-24518-00-00 |
— | ||
|
27
|
27
95201-08600-00
Bolt
|
95201-08600-00 |
— | ||
