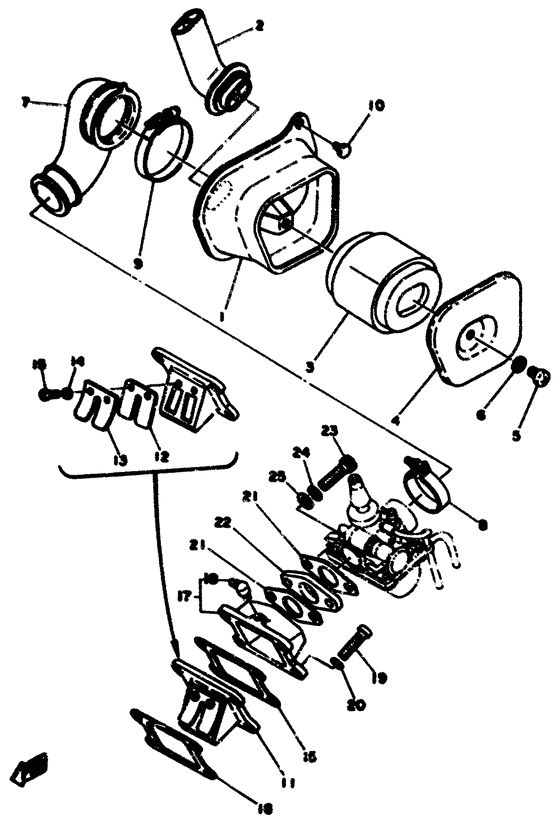

Intake Diagram Yamaha TY
- Year
- 1978
- Model code
- 1F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- TY50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1G3-14411-00-00
Case, Air Cleaner 1
|
1G3-14411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
1G3-14411-01-00
Case, Air Cleaner
|
1G3-14411-01-00 |
— | ||
|
2
|
2
1G3-14454-00-00
Joint
|
1G3-14454-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
367-14451-01-00 Element, Air Cleaner |
367-14451-01-00 |
US $30.89 |
||
| replacements | |||||
|
3
|
3
367-14451-09-00 Element, Air Clnr |
367-14451-09-00 |
from US $29.74 |
||
|
3
|
3
367-14451-08-00 |
367-14451-08-00 |
US $17.42 |
||
|
4
|
4
538-14412-00-00
Cap, Cleaner Case 1
|
538-14412-00-00 |
— | ||
| replacement | |||||
|
4
|
4
538-14412-01-00
Cap, Air Cleaner Case
|
538-14412-01-00 |
— | ||
|
5
|
5
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
6
|
6
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
7
|
7
538-14453-00-00
Joint, Air Cleaner 1
|
538-14453-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90460-33013-00
Clamp, Hose (353-14455-00-00)
|
90460-33013-00 |
— | ||
|
9
|
9
170-14455-00-00 Band |
170-14455-00-00 |
US $11.76 |
||
| replacement | |||||
|
9
|
9
904-60492-48-00
Clamp, Hose
|
904-60492-48-00 |
— | ||
|
10
|
10
97301-06010-00 Bolt |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
11
|
11
353-13610-01-00
Reed Valve Assembly
|
353-13610-01-00 |
— | ||
|
12
|
12
314-13613-00-00 Reed, Valve |
314-13613-00-00 |
US $23.66 |
||
| replacement | |||||
|
12
|
12
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
13
|
13
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
13
|
13
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
14
|
14
92901-03100-00 Washer, Spring |
92901-03100-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
15
|
15
98512-03008-00 Screw, Pan Head |
98512-03008-00 |
US $1.21 |
||
| replacement | |||||
|
15
|
15
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
16
|
16
353-13621-00-00 Gasket, Valve Seat |
353-13621-00-00 |
from US $5.38 |
||
| replacement | |||||
|
16
|
16
3MT-13621-00-00 Gasket, Valve Seat |
3MT-13621-00-00 |
from US $6.94 |
||
|
17
|
17
353-13565-00-00
Joint, Carburetor
|
353-13565-00-00 |
— | ||
|
18
|
18
278-13552-02-00
Nozzle
|
278-13552-02-00 |
— | ||
| replacement | |||||
|
18
|
18
3XV-13741-00-00
Nozzle
|
3XV-13741-00-00 |
— | ||
|
19
|
19
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
20
|
20
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
353-13556-00-00 Gasket, Manifold |
353-13556-00-00 |
from US $5.15 |
||
| replacement | |||||
|
21
|
21
3FD-13556-00-00 Gasket, Manifold |
3FD-13556-00-00 |
from US $5.81 |
||
|
22
|
22
353-13555-00-00
Manifold, Intake
|
353-13555-00-00 |
— | ||
|
23
|
23
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
23
|
23
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.18 |
||
|
24
|
24
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
