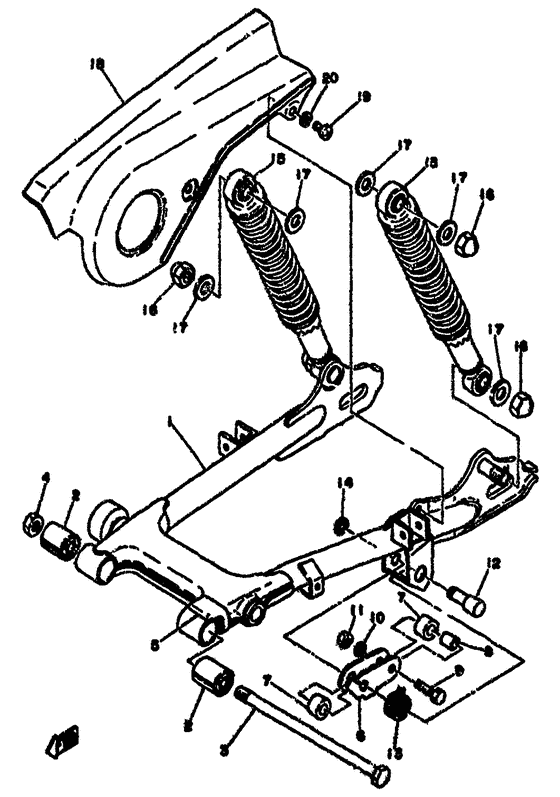

Rear arm/cushion chain case Diagram Yamaha TY
- Year
- 1978
- Model code
- 1F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- TY50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
538-22110-00-35
Rear Arm Comp
|
538-22110-00-35 |
— | ||
|
2
|
2
102-22123-00-00 Bush 1 |
102-22123-00-00 |
from US $10.73 |
||
|
3
|
3
288-22141-00-00 Shaft, Pivot |
288-22141-00-00 |
from US $35.23 |
||
|
4
|
4
95301-10600-00 Nut |
95301-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
5
|
5
183-22151-00-00 Seal, Guard |
183-22151-00-00 |
from US $7.37 |
||
|
15
|
15
462-22210-22-00
Shk/abs Assembly, Rear
|
462-22210-22-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
95304-12800-00 Nut, Crown |
95304-12800-00 |
US $8.08 |
||
| replacement | |||||
|
16
|
16
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $4.04 |
||
|
17
|
17
90201-12175-00 Washer, Plate |
90201-12175-00 |
from US $3.40 |
||
|
18
|
18
538-22311-00-35
Case, Chain
|
538-22311-00-35 |
— | ||
|
19
|
19
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
19
|
19
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
19
|
19
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
20
|
20
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
