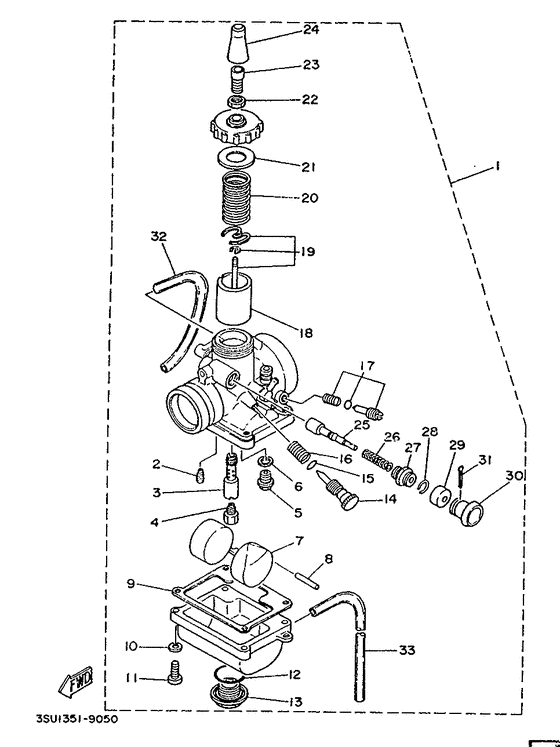

Carburetor Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1K6-14101-00-00
Carburetor Assy 1
|
1K6-14101-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
260-14142-25-00 Jet, Pilot |
260-14142-25-00 |
from US $10.46 |
||
|
03
|
03
558-14141-30-00
Nozzle, Main
|
558-14141-30-00 |
— | ||
|
04
|
04
137-14143-18-00 Jet, Main (#90)Ur |
137-14143-18-00 |
US $4.39 |
||
|
04
|
04
137-14143-20-00 Jet, Main (#100)Ur std |
137-14143-20-00 |
from US $10.35 |
||
|
04
|
04
137-14143-22-A0 Jet, Main #110Jet, main (110) Ur |
137-14143-22-A0 |
from US $10.37 |
||
|
05
|
05
353-14190-18-00 Needle Valve Assembly (#1.8) |
353-14190-18-00 |
from US $43.69 |
||
|
06
|
06
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
07
|
07
525-14185-00-00
Float
|
525-14185-00-00 |
— | ||
|
08
|
08
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
09
|
09
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $4.04 |
||
|
10
|
10
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
98511-04016-00 Screw, Pan Head |
98511-04016-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
12
|
12
558-14147-00-00 O-Ring |
558-14147-00-00 |
from US $9.07 |
||
|
13
|
13
500-14115-00-00 Plug, Screw |
500-14115-00-00 |
from US $30.60 |
||
|
14
|
14
493-14122-00-00
Screw, Throttle
|
493-14122-00-00 |
— | ||
|
15
|
15
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $3.04 |
||
|
16
|
16
493-14133-00-00 Spring, Throttle Stop |
493-14133-00-00 |
US $10.43 |
||
|
17
|
17
10W-14104-00-00 Air Screw Set |
10W-14104-00-00 |
from US $16.47 |
||
|
18
|
18
304-14112-30-00
Valve, Throttle 1
|
304-14112-30-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
18L-1490J-00-00 Needle |
18L-1490J-00-00 |
from US $22.53 |
||
|
20
|
20
3X3-14131-00-00 Spring, Thrtl Valve |
3X3-14131-00-00 |
from US $14.45 |
||
|
21
|
21
193-14126-00-00 Gasket |
193-14126-00-00 |
from US $3.26 |
||
|
22
|
22
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $3.47 |
||
|
23
|
23
360-14124-20-00
Screw, Cable Adjusting
|
360-14124-20-00 |
— | ||
|
24
|
24
525-14169-00-00
Cap
|
525-14169-00-00 |
— | ||
|
25
|
25
304-14171-00-00
Plunger, Starter
|
304-14171-00-00 |
— | ||
|
26
|
26
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
27
|
27
152-14174-00-00 Cap, Plunger |
152-14174-00-00 |
from US $27.49 |
||
|
28
|
28
152-14138-00-00
Clip, Plunger
|
152-14138-00-00 |
— | ||
|
29
|
29
132-14173-00-00 Cover, Plunger Cap |
132-14173-00-00 |
from US $8.08 |
||
|
30
|
30
304-14261-00-00 Holder |
304-14261-00-00 |
from US $31.17 |
||
|
31
|
31
914-01160-15-00
Pin, Cotter
|
914-01160-15-00 |
— | ||
| replacement | |||||
|
31
|
31
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
32
|
32
313-14197-00-00 Pipe, Airvent |
313-14197-00-00 |
US $4.82 |
||
| replacement | |||||
|
32
|
32
89A-14987-00-00 Hose |
89A-14987-00-00 |
from US $4.53 |
||
|
33
|
33
183-14196-00-00 Pipe, Airvent |
183-14196-00-00 |
from US $15.58 |
||
| replacement | |||||
|
33
|
33
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
