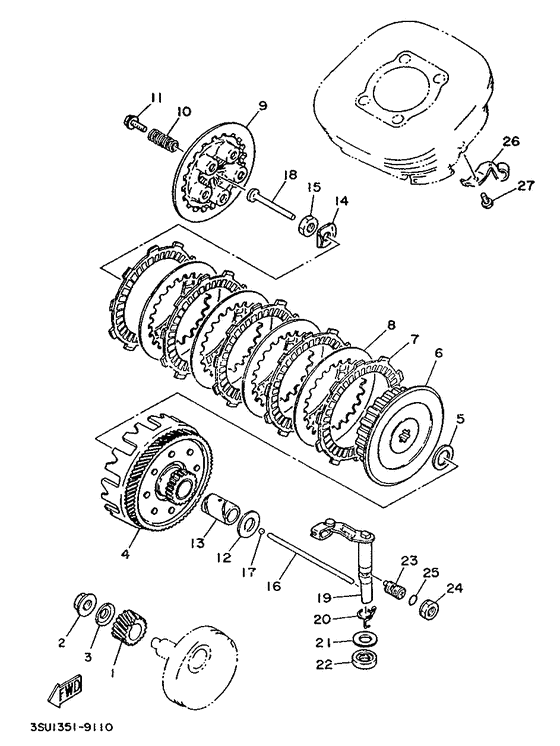

Clutch Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
525-16111-00-00
Gear, Pri Drive
|
525-16111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
02
|
02
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
03
|
03
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
03
|
03
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
04
|
04
525-16150-00-00
Pri Driven Gear (74T)
|
525-16150-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
06
|
06
525-16371-02-00
Boss, Clutch
|
525-16371-02-00 |
— | ||
|
07
|
07
525-16321-00-00 Plate, Friction |
525-16321-00-00 |
US $20.40 |
||
| replacement | |||||
|
07
|
07
537-16321-00-00 Plate, Friction |
537-16321-00-00 |
from US $9.78 |
||
|
08
|
08
137-16325-70-00 Plate, Clutch 2 |
137-16325-70-00 |
from US $17.78 |
||
| replacement | |||||
|
08
|
08
137-16325-80-00 Plate, Clutch 2 |
137-16325-80-00 |
US $16.85 |
||
|
09
|
09
525-16351-00-00
Plate, Pressure 1
|
525-16351-00-00 |
— | ||
|
10
|
10
90501-20125-00 Spring, Compression |
90501-20125-00 |
from US $4.11 |
||
|
11
|
11
90159-05011-00 Screw, With Washer |
90159-05011-00 |
from US $1.70 |
||
|
12
|
12
90201-17543-00 Washer, Plate |
90201-17543-00 |
from US $2.25 |
||
| replacement | |||||
|
12
|
12
90201-180P2-00 Washer, Plate |
90201-180P2-00 |
from US $4.25 |
||
|
13
|
13
90560-17147-00 Spacer |
90560-17147-00 |
from US $18.42 |
||
|
14
|
14
90215-12211-00 Washer, Lock |
90215-12211-00 |
from US $1.81 |
||
|
15
|
15
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.31 |
||
|
16
|
16
1W1-16357-00-00
Rod, Push 2
|
1W1-16357-00-00 |
— | ||
|
17
|
17
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
18
|
18
137-16356-00-00 Rod, Push 1 |
137-16356-00-00 |
from US $18.99 |
||
|
19
|
19
525-16380-00-00 Push Lever Assembly |
525-16380-00-00 |
US $103.36 |
||
|
20
|
20
90508-14132-00 Spring, Torsion |
90508-14132-00 |
US $4.99 |
||
|
21
|
21
90201-14217-00 Washer, Plate |
90201-14217-00 |
from US $1.70 |
||
|
22
|
22
931-04140-04-00
Oil Seal
|
931-04140-04-00 |
— | ||
| replacement | |||||
|
22
|
22
93104-14059-00 Oil Seal |
93104-14059-00 |
from US $4.72 |
||
|
23
|
23
90149-12097-00
Screw
|
90149-12097-00 |
— | ||
|
24
|
24
90179-12197-00
Nut
|
90179-12197-00 |
— | ||
| replacements | |||||
|
24
|
24
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.81 |
||
|
26
|
26
525-15441-01-00
Holder, Clutch Cable
|
525-15441-01-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
27
|
27
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
