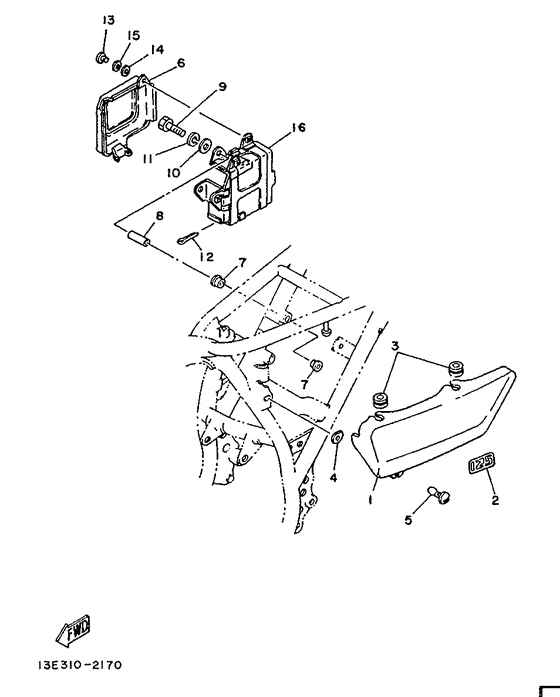

Couvercle lateral Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1K6-21711-11-00
Cover, Side 1
|
1K6-21711-11-00 |
— | ||
|
02
|
02
1K6-21787-00-00
Emblem 7
|
1K6-21787-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
04
|
04
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
05
|
05
371-21714-00-00
Knob, Side Cover 1
|
371-21714-00-00 |
— | ||
|
06
|
06
461-21730-01-00
Side Cover Assy 3
|
461-21730-01-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
461-21717-00-00 Damper, Battery Box |
461-21717-00-00 |
US $9.63 |
||
|
08
|
08
539-21544-00-00
Collar 1
|
539-21544-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
970-01060-45-00
Bolt
|
970-01060-45-00 |
— | ||
| replacement | |||||
|
09
|
09
97017-06045-00 Bolt |
97017-06045-00 |
from US $1.70 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
91401-30040-00 Pin,cotter |
91401-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
12
|
12
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
13
|
13
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
14
|
14
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
15
|
15
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
461-21170-00-00
Box Comp
|
461-21170-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
