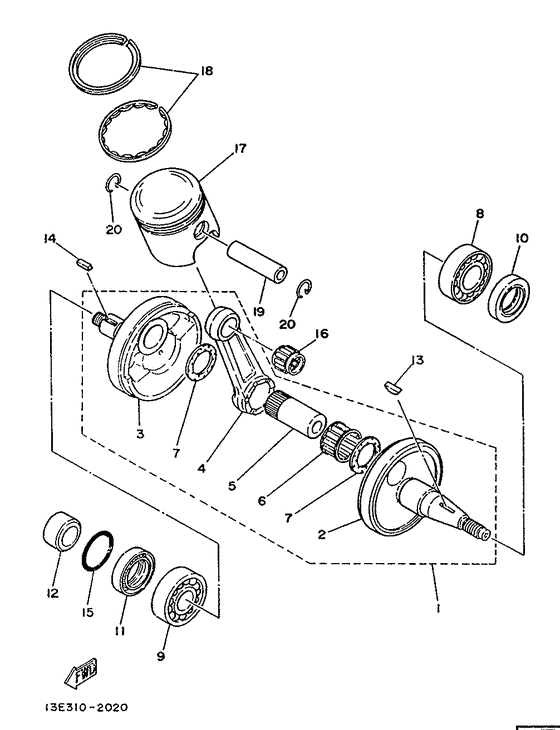

Crankshaft & Piston Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
525-11400-01-00
Crankshaft Assy
|
525-11400-01-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
525-11412-00-00
Crank 1
|
525-11412-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
525-11422-00-00
Crank 2
|
525-11422-00-00 |
— | ||
|
04
|
04
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
05
|
05
525-11681-01-00 Pin, Crank 1 |
525-11681-01-00 |
US $38.13 |
||
| replacement | |||||
|
05
|
05
3M5-11681-00-00 Pin, Crank 1 |
3M5-11681-00-00 |
from US $9.78 |
||
|
06
|
06
93310-422L0-00 Bearing |
93310-422L0-00 |
from US $9.78 |
||
|
07
|
07
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $4.38 |
||
|
08
|
08
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $17.18 |
||
|
09
|
09
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
09
|
09
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
10
|
10
93102-25061-00 Oil Seal, Sd-Type |
93102-25061-00 |
from US $6.66 |
||
|
11
|
11
93102-28011-00
Oil Seal
|
93102-28011-00 |
— | ||
|
12
|
12
90387-20488-00 Collar |
90387-20488-00 |
from US $13.46 |
||
|
13
|
13
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
13
|
13
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.15 |
||
|
14
|
14
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
15
|
15
932-10180-23-00
O-Ring
|
932-10180-23-00 |
— | ||
| replacement | |||||
|
15
|
15
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $2.02 |
||
|
16
|
16
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $28.57 |
||
|
17
|
17
444-11631-00-97
Piston Std
|
444-11631-00-97 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
444-11635-00-00
Piston 1 O/s 0.25
Ap |
444-11635-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Ap |
999-99999-99-00 |
— | ||
|
17
|
17
444-11636-00-00
Piston 2 O/s 0.50
Ap |
444-11636-00-00 |
— | ||
|
17
|
17
444-11637-00-00
Piston 3 O/s 0.75
Ap |
444-11637-00-00 |
— | ||
|
17
|
17
444-11638-00-00
Piston 4 O/s 1.00
Ap |
444-11638-00-00 |
— | ||
|
18
|
18
444-11610-40-00 Piston Ringset 4ThAp |
444-11610-40-00 |
US $43.09 |
||
|
18
|
18
444-11610-00-00
Piston Ringset Std
|
444-11610-00-00 |
— | ||
|
18
|
18
444-11610-10-00
Piston Ringset 1St
Ap |
444-11610-10-00 |
— | ||
|
18
|
18
444-11610-20-00
Piston Ringset 2Nd
Ap |
444-11610-20-00 |
— | ||
|
18
|
18
444-11610-30-00
Piston Ringset 3Rd
Ap |
444-11610-30-00 |
— | ||
|
19
|
19
137-11633-00-00
Pin, Piston
|
137-11633-00-00 |
— | ||
| replacement | |||||
|
19
|
19
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.22 |
||
|
20
|
20
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
