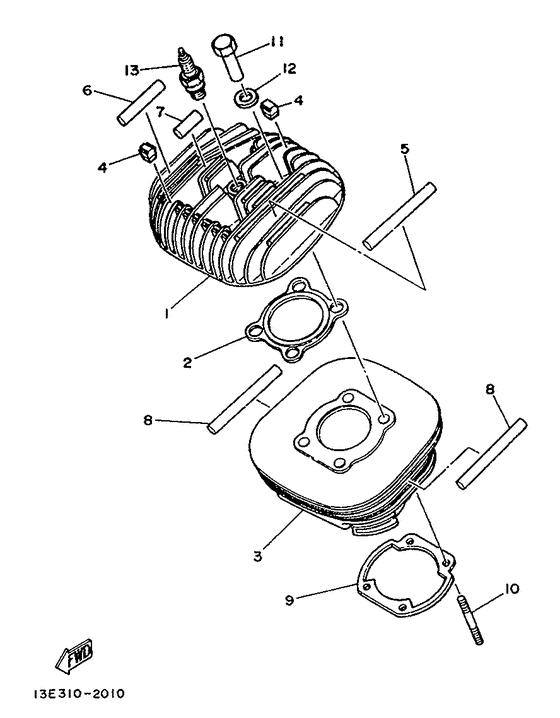

Cylinder Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
539-11111-00-00
Head, Cylinder 1
|
539-11111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
248-11181-00-00 Gasket, Cylinder Head 1 |
248-11181-00-00 |
from US $16.43 |
||
|
03
|
03
539-11311-00-00
Cylinder 1
|
539-11311-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
1T9-11161-00-00 Absorber 1 |
1T9-11161-00-00 |
US $4.53 |
||
|
05
|
05
1K6-11162-00-00
Absorber 2
|
1K6-11162-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
1K6-11127-00-00
Absorber 3
|
1K6-11127-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
576-11127-00-00 Absorber 3 |
576-11127-00-00 |
from US $5.92 |
||
|
08
|
08
1K6-11161-00-00
Absorber 1
|
1K6-11161-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
248-11351-00-00 Gasket, Cylinder |
248-11351-00-00 |
from US $8.78 |
||
| replacement | |||||
|
09
|
09
1WE-11351-00-00 Gasket, Cylinder |
1WE-11351-00-00 |
from US $6.76 |
||
|
10
|
10
90116-08064-00 Bolt, Stud |
90116-08064-00 |
from US $4.04 |
||
|
11
|
11
90179-08025-00 Nut |
90179-08025-00 |
from US $5.29 |
||
| replacement | |||||
|
11
|
11
901-79083-03-00 Nut |
901-79083-03-00 |
from US $7.65 |
||
|
12
|
12
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
13
|
13
94701-00044-00 Plug, Spark (B7Es)Plug, spark (ngk b-7es) |
94701-00044-00 |
US $5.74 |
||
| replacements | |||||
|
13
|
13
947-01003-49-00
Spark Plug Br7Es
|
947-01003-49-00 |
— | ||
|
13
|
13
947-02000-44-00
Plug, Spark (B7Es)
|
947-02000-44-00 |
— | ||
