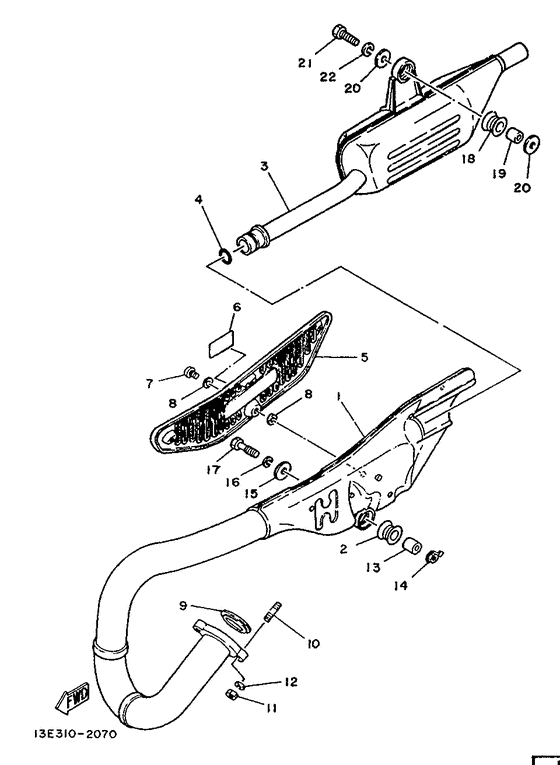

Exhaust Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
525-14610-02-00
Exhaust Pipe Assy 1
|
525-14610-02-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
565-14747-00-00 Damper, Muffler |
565-14747-00-00 |
from US $8.78 |
||
|
03
|
03
1K6-14753-01-00
Silencer, Exhaust
|
1K6-14753-01-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
93210-19026-00 O-Ring |
93210-19026-00 |
from US $1.84 |
||
|
05
|
05
525-14718-00-36
Protector, Muffler 1
White |
525-14718-00-36 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
White |
999-99999-99-00 |
— | ||
|
06
|
06
1K6-14729-00-00
Emblem, Protector
|
1K6-14729-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
07
|
07
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
07
|
07
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
08
|
08
902-02060-10-00
Washer Plate 178147660000
|
902-02060-10-00 |
— | ||
| replacement | |||||
|
08
|
08
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
09
|
09
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
09
|
09
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
10
|
10
90116-06016-00 Bolt, Stud |
90116-06016-00 |
from US $3.40 |
||
|
11
|
11
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
14
|
14
525-14681-00-00
Nut
|
525-14681-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
15
|
15
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
17
|
17
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
17
|
17
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
18
|
18
565-14747-00-00 Damper, Muffler |
565-14747-00-00 |
from US $8.78 |
||
|
19
|
19
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
20
|
20
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
20
|
20
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
21
|
21
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
21
|
21
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
21
|
21
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
21
|
21
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
