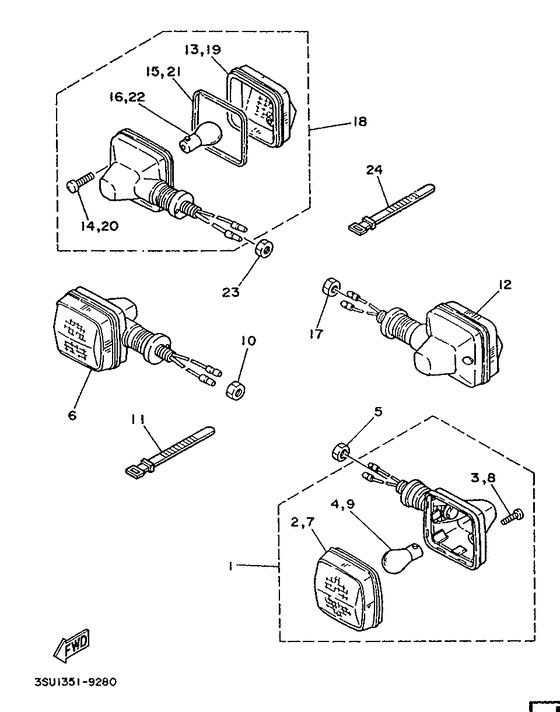

Flasher light Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3SS-83310-00-00
Front Flasher Light Assy 1
|
3SS-83310-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
47J-83312-00-00 Lens, Flasher |
47J-83312-00-00 |
US $11.76 |
||
|
03
|
03
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
04
|
04
308-83311-30-00
Bulb, Flasher
|
308-83311-30-00 |
— | ||
|
05
|
05
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
05
|
05
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.35 |
||
|
06
|
06
3SS-83320-00-00
Front Flasher Light Assy 2
|
3SS-83320-00-00 |
— | ||
|
07
|
07
47J-83322-00-00 Lens, Flasher 2 |
47J-83322-00-00 |
US $11.76 |
||
|
08
|
08
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
09
|
09
308-83311-30-00
Bulb, Flasher
|
308-83311-30-00 |
— | ||
|
10
|
10
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.35 |
||
|
11
|
11
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
11
|
11
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
12
|
12
3SS-83330-00-00
Rear Flasher Light Assy 1
|
3SS-83330-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
2KF-83332-01-00
Lens, Flasher
|
2KF-83332-01-00 |
— | ||
|
14
|
14
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
15
|
15
47J-83313-00-00 Gasket, Flasher Lens |
47J-83313-00-00 |
US $3.26 |
||
|
16
|
16
308-83311-30-00
Bulb, Flasher
|
308-83311-30-00 |
— | ||
|
17
|
17
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.35 |
||
|
18
|
18
3SS-83340-00-00
Flasher Light Assy 2
|
3SS-83340-00-00 |
— | ||
|
19
|
19
2KF-83342-00-00 Lens, Flasher 2 |
2KF-83342-00-00 |
US $14.73 |
||
|
20
|
20
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
21
|
21
47J-83313-00-00 Gasket, Flasher Lens |
47J-83313-00-00 |
US $3.26 |
||
|
22
|
22
308-83311-30-00
Bulb, Flasher
|
308-83311-30-00 |
— | ||
|
23
|
23
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
23
|
23
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.35 |
||
|
24
|
24
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
24
|
24
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
