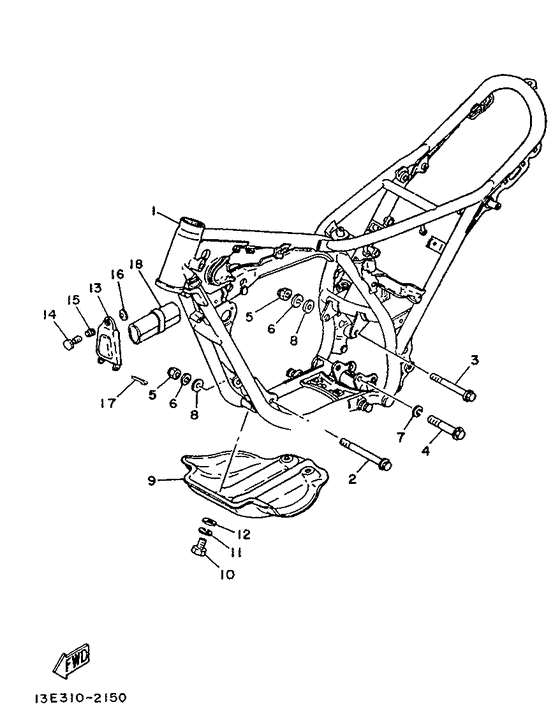

Frame Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3SU-21110-00-35
Frame Comp
Silver |
3SU-21110-00-35 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
02
|
02
90105-08024-00 Bolt, Flange |
90105-08024-00 |
from US $5.10 |
||
|
03
|
03
90105-08120-00 Bolt, Flange |
90105-08120-00 |
from US $7.51 |
||
| replacement | |||||
|
03
|
03
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
04
|
04
90105-10037-00 Bolt, Flange |
90105-10037-00 |
from US $6.52 |
||
|
05
|
05
90185-08054-00 Nut, Self-Locking |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
05
|
05
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
05
|
05
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
|
06
|
06
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
07
|
07
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
07
|
07
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
08
|
08
90209-08050-00 Washer, Spec''l Shap |
90209-08050-00 |
from US $4.11 |
||
|
09
|
09
525-21471-00-39
Protector, Engine
Clear |
525-21471-00-39 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
Clear |
999-99999-99-00 |
— | ||
|
10
|
10
97001-08018-00 Bolt |
97001-08018-00 |
US $3.12 |
||
| replacement | |||||
|
10
|
10
97095-08018-00 Bolt, Hexagon |
97095-08018-00 |
from US $3.47 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
12
|
12
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
13
|
13
461-28171-00-00
Cover, Tool Box
|
461-28171-00-00 |
— | ||
|
14
|
14
434-28172-00-00
Knob, Tool Box
|
434-28172-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90501-10187-00
Spring, Compression
|
90501-10187-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
90179-06034-00 Nut, Spec''l Shape (256-27218-0 |
90179-06034-00 |
from US $3.12 |
||
|
17
|
17
91401-30040-00 Pin,cotter |
91401-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
17
|
17
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
18
|
18
2A6-W2810-00-00 Tool Kit |
2A6-W2810-00-00 |
from US $116.88 |
||
