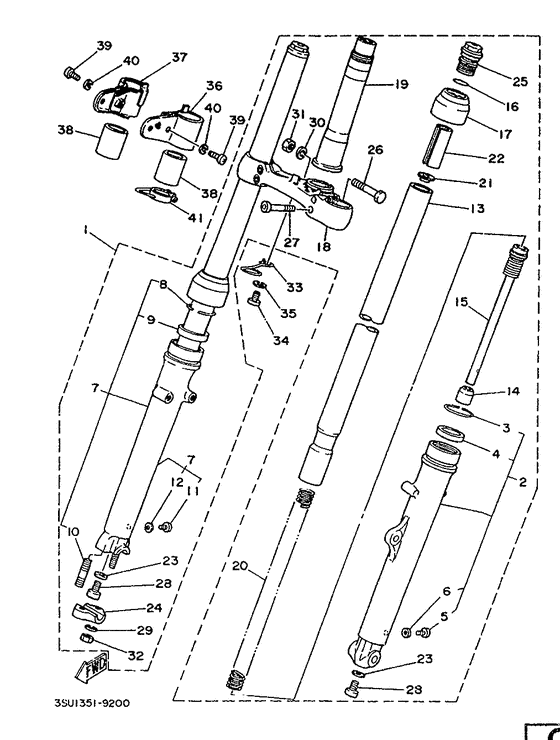

Front fork Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
539-23101-01-00
Front Fork Assy
|
539-23101-01-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
539-23126-01-00
Tube, Outer (L.h)
|
539-23126-01-00 |
— | ||
|
03
|
03
3V3-23156-00-00 Ring, Snap |
3V3-23156-00-00 |
from US $6.09 |
||
|
04
|
04
5F6-23145-00-00 Oil Seal |
5F6-23145-00-00 |
from US $19.58 |
||
| replacements | |||||
|
04
|
04
33J-23145-00-00 Oil Seal |
33J-23145-00-00 |
from US $20.97 |
||
|
04
|
04
5F6-F3145-00-00 Oil Seal Front F (5F6-23145-00 |
5F6-F3145-00-00 |
US $12.92 |
||
|
05
|
05
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
05
|
05
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
05
|
05
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
06
|
06
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
07
|
07
539-23136-01-00
Tube, Outer 2
|
539-23136-01-00 |
— | ||
|
08
|
08
3V3-23156-00-00 Ring, Snap |
3V3-23156-00-00 |
from US $6.09 |
||
|
09
|
09
5F6-23145-00-00 Oil Seal |
5F6-23145-00-00 |
from US $19.58 |
||
| replacements | |||||
|
09
|
09
33J-23145-00-00 Oil Seal |
33J-23145-00-00 |
from US $20.97 |
||
|
09
|
09
5F6-F3145-00-00 Oil Seal Front F (5F6-23145-00 |
5F6-F3145-00-00 |
US $12.92 |
||
|
10
|
10
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
11
|
11
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
11
|
11
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
11
|
11
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
12
|
12
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
13
|
13
539-23110-01-00
Inner Tube Comp.1
|
539-23110-01-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
3W0-23173-00-00
Spindle, Taper
|
3W0-23173-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
539-23170-01-00
Cylinder Comp., Front Fork
|
539-23170-01-00 |
— | ||
|
16
|
16
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
17
|
17
535-23144-00-00 Seal, Dust |
535-23144-00-00 |
from US $16.16 |
||
| replacement | |||||
|
17
|
17
535-F3144-00-00
Seal Dust (535-23144-00) Dt100
|
535-F3144-00-00 |
— | ||
|
18
|
18
539-23345-00-00
Bracket, Lower
|
539-23345-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
516-23341-31-00
Shaft, Steering
|
516-23341-31-00 |
— | ||
|
20
|
20
539-23141-01-00
Spring, Front Fork
|
539-23141-01-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
304-23142-50-00
Seat, Spring Upper
|
304-23142-50-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
539-23118-01-00
Spacer
|
539-23118-01-00 |
— | ||
|
23
|
23
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
24
|
24
315-23167-51-00
Holder, Axle
|
315-23167-51-00 |
— | ||
|
25
|
25
2K5-23111-00-00
Bolt, Cap
|
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
322-23356-00-00
Bolt 2
|
322-23356-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
322-23346-00-00
Bolt 1
|
322-23346-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
28
|
28
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
30
|
30
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
30
|
30
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
31
|
31
322-23357-00-00
Nut
|
322-23357-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
90170-08176-00 Nut, Hexagon |
90170-08176-00 |
US $3.40 |
||
| replacement | |||||
|
32
|
32
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
33
|
33
539-23319-01-00
Wire, Holder 2
|
539-23319-01-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
34
|
34
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
35
|
35
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
35
|
35
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
36
|
36
3SU-23121-00-00
Cover, Upper 1
|
3SU-23121-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
3SU-23131-00-00
Cover, Upper 2
|
3SU-23131-00-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
525-23163-00-00
Gasket
|
525-23163-00-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
92503-06018-00 Screw, Pan Head |
92503-06018-00 |
US $3.26 |
||
| replacement | |||||
|
39
|
39
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
40
|
40
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
40
|
40
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
41
|
41
525-23318-01-00
Holder, Cable 1
|
525-23318-01-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
