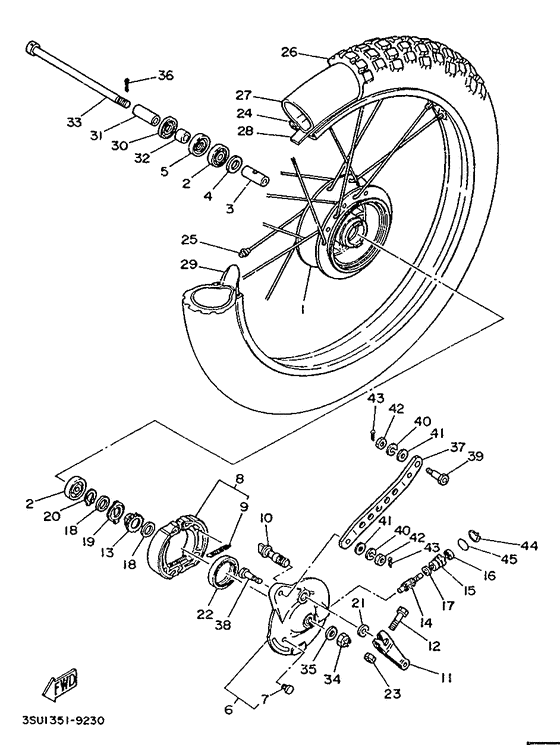

Front wheel Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
248-25111-00-Y8 Hub, FrontSilver |
248-25111-00-Y8 |
US $196.19 |
||
| replacement | |||||
|
01
|
01
248-25111-10-00 Hub, FrontSilver |
248-25111-10-00 |
from US $98.98 |
||
|
02
|
02
93306-30109-00 Bearing |
93306-30109-00 |
from US $12.75 |
||
| replacement | |||||
|
02
|
02
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
03
|
03
90560-12138-00 Spacer |
90560-12138-00 |
from US $4.96 |
||
|
04
|
04
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
05
|
05
93102-18008-00 Oil Seal |
93102-18008-00 |
from US $7.23 |
||
|
06
|
06
1N4-25016-00-35
Brake Shoe Plate Assy
Silver |
1N4-25016-00-35 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
07
|
07
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
08
|
08
22F-W2534-00-00
Brakeshoe Set
|
22F-W2534-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
10
|
10
434-25151-00-00
Camshaft
|
434-25151-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
401-25155-11-00
Lever, Camshaft 1 (401-25155-00
|
401-25155-11-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
13
|
13
248-25135-11-00
Gear, Drive
|
248-25135-11-00 |
— | ||
|
14
|
14
248-25138-11-00
Gear, Meter
|
248-25138-11-00 |
— | ||
|
15
|
15
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
16
|
16
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
17
|
17
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
18
|
18
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
19
|
19
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
20
|
20
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
21
|
21
137-25159-00-00
Seal, Camshaft
|
137-25159-00-00 |
— | ||
|
22
|
22
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
23
|
23
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
24
|
24
94416-21165-00
Rim (1.60-21)
|
94416-21165-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
345-25104-01-00 Spoke Set, Front |
345-25104-01-00 |
from US $126.11 |
||
|
26
|
26
94127-21151-00
275X21 Dun Tu Et
|
94127-21151-00 |
— | ||
| replacement | |||||
|
26
|
26
941-27213-25-00
Front Tire
|
941-27213-25-00 |
— | ||
|
27
|
27
94225-21186-00 Tube 2.75/3.00-21Yokohama |
94225-21186-00 |
US $27.41 |
||
| replacement | |||||
|
27
|
27
942-27212-93-00
Tube (2.75-21)(2Yy)
Yokohama |
942-27212-93-00 |
— | ||
|
28
|
28
94325-21117-00 Band, Rim (1.85-21)Yokohama |
94325-21117-00 |
from US $4.39 |
||
| replacement | |||||
|
28
|
28
94330-21084-00 Band, Rim (1.60-21)Yokohama |
94330-21084-00 |
from US $4.39 |
||
|
29
|
29
1T1-25194-00-00 Spacer, Bead |
1T1-25194-00-00 |
from US $56.65 |
||
|
30
|
30
2K5-25118-00-00 Cover, Hub Dust |
2K5-25118-00-00 |
from US $10.26 |
||
|
31
|
31
90387-12100-00
Collar
|
90387-12100-00 |
— | ||
|
32
|
32
90387-12095-00 Collar |
90387-12095-00 |
from US $5.95 |
||
|
33
|
33
401-25181-01-00 Axle, Wheel |
401-25181-01-00 |
from US $55.68 |
||
|
34
|
34
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
34
|
34
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
35
|
35
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
36
|
36
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
36
|
36
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
37
|
37
434-25171-01-00
Bar, Tension
|
434-25171-01-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
90109-08234-00
Bolt
|
90109-08234-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
90109-08380-00
Bolt
|
90109-08380-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
41
|
41
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
41
|
41
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
42
|
42
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
42
|
42
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
43
|
43
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
43
|
43
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
43
|
43
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
44
|
44
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
45
|
45
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
45
|
45
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
