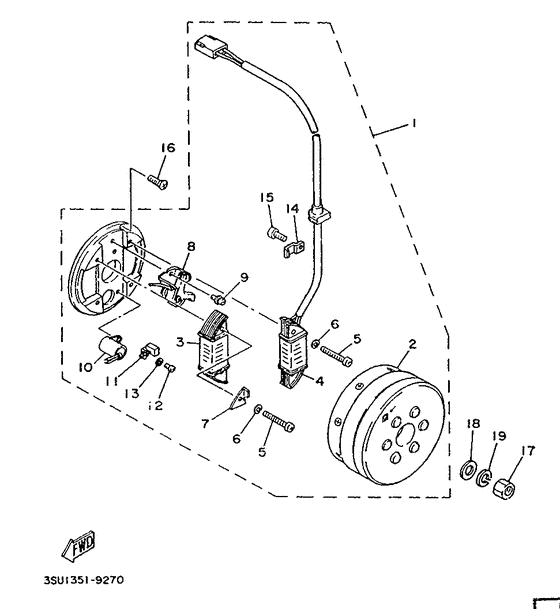

Generator Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
539-81300-10-00
Flywheel Magneto Assy
|
539-81300-10-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
525-81350-10-00
Rotor Assembly
|
525-81350-10-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
461-81312-10-00
Coil, Source
|
461-81312-10-00 |
— | ||
|
04
|
04
539-81313-10-00
Coil, Lighting 1
|
539-81313-10-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
05
|
05
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
05
|
05
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
06
|
06
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
06
|
06
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
07
|
07
434-81332-10-00
Plate, Timing
|
434-81332-10-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
434-81321-10-00 Contact Brkr Assembly |
434-81321-10-00 |
from US $66.98 |
||
|
09
|
09
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
10
|
10
207-81326-90-00 Condenser 2 |
207-81326-90-00 |
US $29.83 |
||
|
11
|
11
207-81331-10-00 Lubricator |
207-81331-10-00 |
US $6.52 |
||
|
12
|
12
985-01040-08-00
Screw, Pan Head
|
985-01040-08-00 |
— | ||
| replacement | |||||
|
12
|
12
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
13
|
13
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
14
|
14
109-81328-11-00
Clamp
|
109-81328-11-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
985-01040-08-00
Screw, Pan Head
|
985-01040-08-00 |
— | ||
| replacement | |||||
|
15
|
15
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
16
|
16
92701-06012-00 Screw, Flat Head |
92701-06012-00 |
from US $2.41 |
||
| replacement | |||||
|
16
|
16
98707-06012-00 Screw, Flat Head |
98707-06012-00 |
from US $2.09 |
||
|
17
|
17
90170-12181-00 Nut, Hexagon (525) |
90170-12181-00 |
from US $2.13 |
||
|
18
|
18
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
|
19
|
19
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
