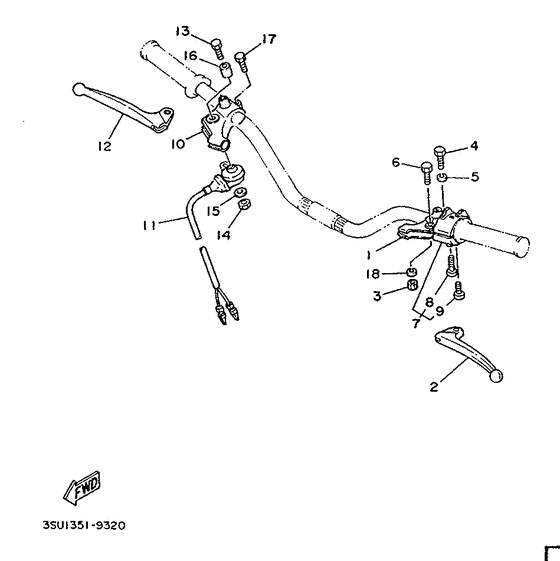

Handle switch & lever Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
498-82911-00-98 Holder, Lever 1Low gloss black |
498-82911-00-98 |
from US $31.03 |
||
| replacement | |||||
|
01
|
01
3Y6-82911-00-00 Holder, Lever 1Low gloss black |
3Y6-82911-00-00 |
from US $31.03 |
||
|
02
|
02
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $10.10 |
||
|
03
|
03
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
04
|
04
97001-06022-00 Bolt |
97001-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
04
|
04
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
05
|
05
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
05
|
05
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
06
|
06
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
06
|
06
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
07
|
07
1K6-83972-00-98
Switch, Handle 4
Low gloss black |
1K6-83972-00-98 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Low gloss black |
999-99999-99-00 |
— | ||
|
08
|
08
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
08
|
08
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
09
|
09
98506-05022-00 Screw, Pan Head |
98506-05022-00 |
from US $1.98 |
||
| replacement | |||||
|
09
|
09
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
10
|
10
516-82921-30-00 Holder, Lever 2 |
516-82921-30-00 |
US $71.14 |
||
|
11
|
11
232-83980-30-00 Stop Switch Assembly |
232-83980-30-00 |
from US $52.78 |
||
|
12
|
12
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
13
|
13
90109-05197-00
Bolt (233-81915-01)
|
90109-05197-00 |
— | ||
|
14
|
14
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
14
|
14
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
15
|
15
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
16
|
16
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
17
|
17
97001-06022-00 Bolt |
97001-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
17
|
17
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
