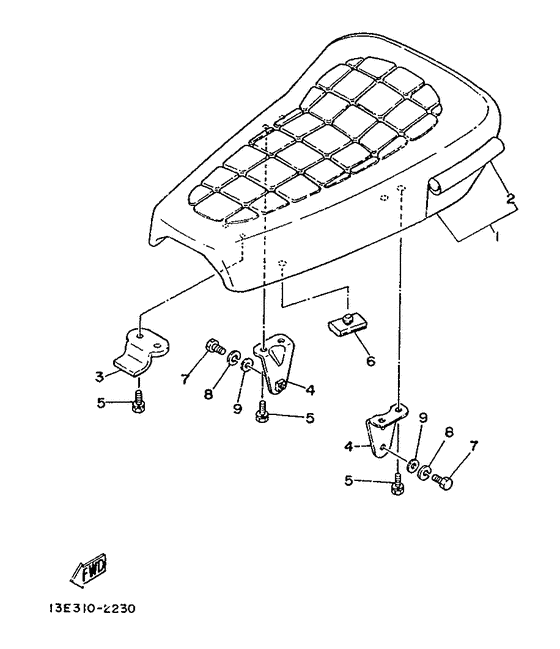

Seat Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
525-W2471-10-00
Single Seat Assy
|
525-W2471-10-00 |
— | ||
| replacement | |||||
|
01
|
01
525-W2471-00-00
Single Seat Assembly
|
525-W2471-00-00 |
— | ||
|
02
|
02
525-24711-10-00
Cover, Single Seat
|
525-24711-10-00 |
— | ||
|
03
|
03
2Y0-24748-00-00 Bracket, Seat |
2Y0-24748-00-00 |
US $18.84 |
||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
509-24738-01-00
Bracket, Seat
|
509-24738-01-00 |
— | ||
|
05
|
05
90101-06304-00 Bolt |
90101-06304-00 |
from US $4.82 |
||
|
06
|
06
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.68 |
||
|
07
|
07
97003-06014-00 Bolt |
97003-06014-00 |
US $2.41 |
||
| replacements | |||||
|
07
|
07
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
07
|
07
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
07
|
07
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
08
|
08
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
09
|
09
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
09
|
09
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
09
|
09
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
09
|
09
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
