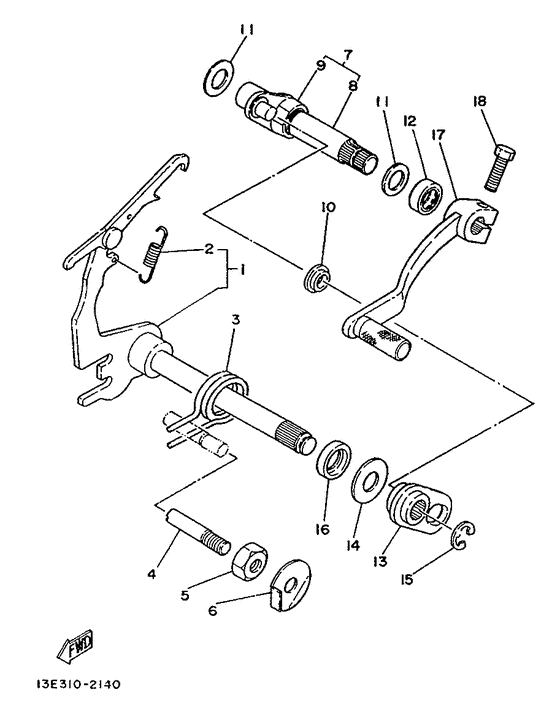

Shift shaft Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
525-18101-01-00
Shift Shaft Assembly.1
|
525-18101-01-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
90506-09009-00 Spring, Tension |
90506-09009-00 |
from US $2.55 |
||
|
03
|
03
90508-25273-00 Spring, Torsion |
90508-25273-00 |
from US $5.29 |
||
| replacement | |||||
|
03
|
03
90508-32054-00 Spring, Torsion |
90508-32054-00 |
from US $3.85 |
||
|
04
|
04
90149-08096-00
Screw, Spec''l Shape
|
90149-08096-00 |
— | ||
|
05
|
05
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
06
|
06
90215-08014-00 Washer, Lock |
90215-08014-00 |
from US $2.55 |
||
|
07
|
07
401-18102-00-00 Shift Shaft Assy 2 |
401-18102-00-00 |
US $104.85 |
||
| replacement | |||||
|
07
|
07
401-18102-02-00
Shift Shaft Assembly 2
|
401-18102-02-00 |
— | ||
|
08
|
08
401-18155-01-00
Shaft, Shift 2
|
401-18155-01-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
401-18151-00-00
Lever, Shift 3
|
401-18151-00-00 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
401-18178-00-00 Roller, Shift Lever |
401-18178-00-00 |
from US $9.49 |
||
|
11
|
11
401-18334-00-00 Shim |
401-18334-00-00 |
from US $6.23 |
||
|
12
|
12
93109-12012-00 Oil Seal |
93109-12012-00 |
from US $10.87 |
||
|
13
|
13
401-18152-01-00 Lever, Shift 4 |
401-18152-01-00 |
from US $33.01 |
||
|
14
|
14
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
15
|
15
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.66 |
||
|
16
|
16
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
16
|
16
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $5.40 |
||
|
17
|
17
525-18111-00-93
Pedal, Shift
Chrome plated |
525-18111-00-93 |
— | ||
| replacement | |||||
|
17
|
17
525-18111-00-00
Pedal, Shift
Chrome plated |
525-18111-00-00 |
— | ||
|
18
|
18
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
