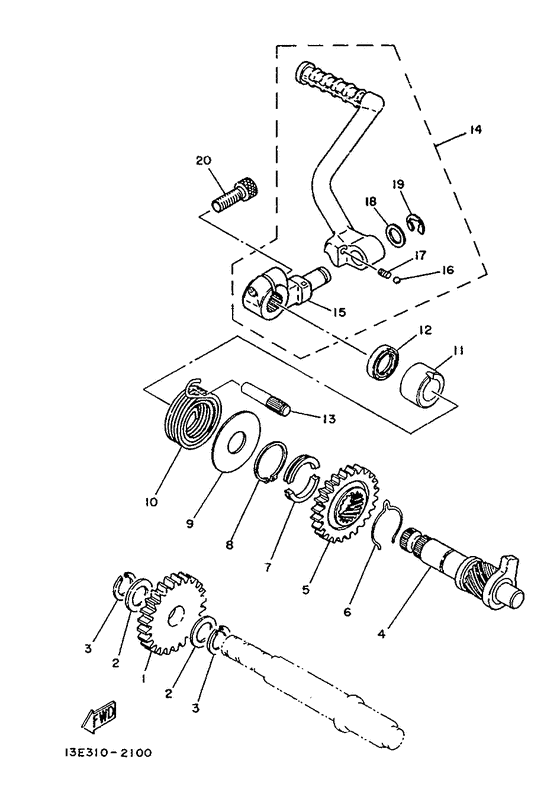

Starter Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
525-15651-00-00 Gear, Kick Idle (25T) |
525-15651-00-00 |
from US $44.76 |
||
|
02
|
02
137-17417-00-05 Shim 1 (0.5T) |
137-17417-00-05 |
from US $3.12 |
||
|
03
|
03
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
03
|
03
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
04
|
04
525-15660-01-00 Kick Axle Assembly |
525-15660-01-00 |
US $184.72 |
||
|
05
|
05
315-15641-00-00 Gear, Kick |
315-15641-00-00 |
from US $59.13 |
||
|
06
|
06
90468-26048-00 Clip |
90468-26048-00 |
from US $1.94 |
||
|
07
|
07
248-15654-00-00 Holder, Kick Gear |
248-15654-00-00 |
from US $9.21 |
||
|
08
|
08
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
09
|
09
401-15676-00-00 Cover, Spring |
401-15676-00-00 |
from US $2.98 |
||
|
10
|
10
90508-26041-00 Spring, Torsion |
90508-26041-00 |
from US $8.93 |
||
|
11
|
11
1W1-15666-00-00 Spacer |
1W1-15666-00-00 |
from US $11.05 |
||
|
12
|
12
93101-17062-00 Oil Seal |
93101-17062-00 |
from US $8.22 |
||
|
13
|
13
257-15668-00-00 Stopper |
257-15668-00-00 |
from US $3.67 |
||
|
14
|
14
525-15620-01-00
Kick Crank Assy
|
525-15620-01-00 |
— | ||
|
15
|
15
525-15621-01-00
Boss, Kick Crank
|
525-15621-01-00 |
— | ||
|
16
|
16
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.63 |
||
|
17
|
17
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
18
|
18
90201-12541-00 Washer, Plate |
90201-12541-00 |
from US $3.26 |
||
|
19
|
19
93430-08007-00 Circlip, E-Type |
93430-08007-00 |
from US $1.84 |
||
|
20
|
20
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
