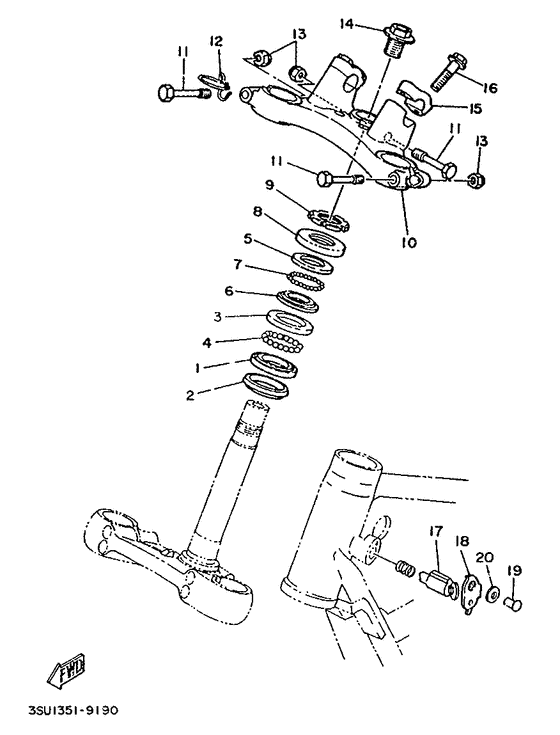

Steering Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
01
|
01
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
02
|
02
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
03
|
03
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
03
|
03
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
04
|
04
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
05
|
05
122-23411-00-00 Race, Ball 1 |
122-23411-00-00 |
from US $8.78 |
||
| replacements | |||||
|
05
|
05
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
|
05
|
05
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
06
|
06
122-23412-00-00 Race, Ball 2 |
122-23412-00-00 |
from US $7.93 |
||
| replacements | |||||
|
06
|
06
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
|
06
|
06
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
07
|
07
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
07
|
07
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
08
|
08
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
09
|
09
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
09
|
09
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
09
|
09
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
10
|
10
525-23435-00-38
Crown, Handle
Clear (with buff) |
525-23435-00-38 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
Clear (with buff) |
999-99999-99-00 |
— | ||
|
11
|
11
97023-08055-00 Bolt |
97023-08055-00 |
US $5.24 |
||
| replacement | |||||
|
11
|
11
97013-08055-00 Bolt |
97013-08055-00 |
from US $3.55 |
||
|
12
|
12
525-23319-00-00
Holder, Cable 2
|
525-23319-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
14
|
14
90105-14136-00 Bolt, Flange |
90105-14136-00 |
from US $2.77 |
||
| replacements | |||||
|
14
|
14
901-05142-20-00 Bolt, Flange |
901-05142-20-00 |
from US $3.68 |
||
|
14
|
14
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
15
|
15
1E6-23441-10-38
Holder, Handle Upr
Clear (with buff) |
1E6-23441-10-38 |
— | ||
|
16
|
16
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
18
|
18
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
19
|
19
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
20
|
20
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
