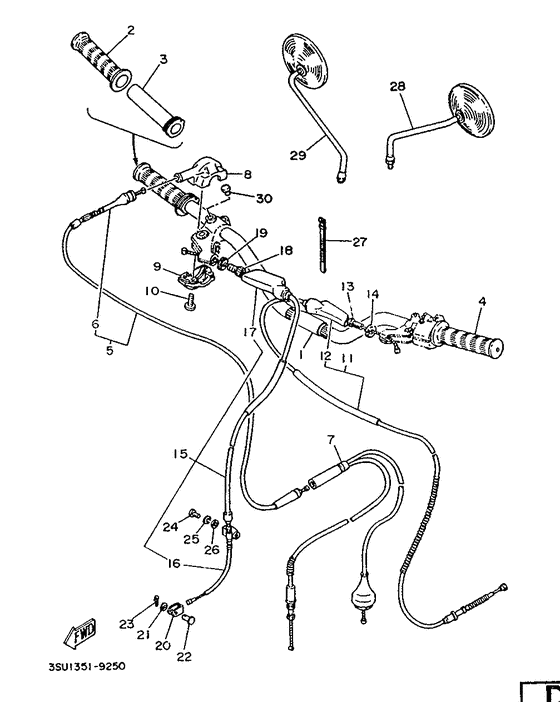

Steering handle & cable Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
525-26111-01-00 Handlebar |
525-26111-01-00 |
from US $201.71 |
||
|
02
|
02
493-26242-00-00
Grip Rh
|
493-26242-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
434-26243-12-00 Tube, Throttle Guide |
434-26243-12-00 |
from US $12.62 |
||
|
04
|
04
493-26241-00-00
Grip
|
493-26241-00-00 |
— | ||
|
05
|
05
525-26311-00-00 Cable, Throttle 1 |
525-26311-00-00 |
from US $57.70 |
||
| replacement | |||||
|
05
|
05
525-26311-01-00 Cable, Throttle 1 |
525-26311-01-00 |
US $49.48 |
||
|
06
|
06
322-26316-00-00
Boot, Throttle Cble
|
322-26316-00-00 |
— | ||
|
07
|
07
525-26312-00-00
Cable, Throttle 2
|
525-26312-00-00 |
— | ||
| replacement | |||||
|
07
|
07
525-26312-01-00
Cable, Throttle 2
|
525-26312-01-00 |
— | ||
|
08
|
08
493-26281-00-39
Cap, Grip Upper
Clear |
493-26281-00-39 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
Clear |
999-99999-99-00 |
— | ||
|
09
|
09
493-26282-00-39
Cap Grip Lower
Clear |
493-26282-00-39 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
Clear |
999-99999-99-00 |
— | ||
|
10
|
10
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
11
|
11
525-26335-00-00 Cable, clutchUr |
525-26335-00-00 |
from US $57.61 |
||
|
11
|
11
525-26335-10-00
Cable, clutch
Ur |
525-26335-10-00 |
— | ||
|
12
|
12
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
12
|
12
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
13
|
13
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
13
|
13
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
14
|
14
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
14
|
14
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
15
|
15
434-26341-04-00 Cable, Brake |
434-26341-04-00 |
from US $70.94 |
||
| replacement | |||||
|
15
|
15
434-26341-05-00 Wire, Brake 1 |
434-26341-05-00 |
US $53.01 |
||
|
16
|
16
434-26342-01-00
Boot, Cable
|
434-26342-01-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
17
|
17
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
18
|
18
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
18
|
18
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
19
|
19
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
19
|
19
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
20
|
20
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
21
|
21
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
22
|
22
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
23
|
23
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
23
|
23
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
23
|
23
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
24
|
24
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
24
|
24
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
25
|
25
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
26
|
26
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
27
|
27
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
27
|
27
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
28
|
28
341-26290-21-00 Back Mirror Assy (L.h) |
341-26290-21-00 |
US $52.79 |
||
| replacement | |||||
|
28
|
28
341-26290-A0-00 Rear View Mirror Assy(Left)Rear view mirror assy (right) |
341-26290-A0-00 |
US $56.65 |
||
|
29
|
29
341-26290-71-00 Mirror Assembly RhAp |
341-26290-71-00 |
US $49.45 |
||
| replacement | |||||
|
29
|
29
341-26290-E0-00 Rear View Mirror Assy(Right)Rear view mirror assy (right) Ap |
341-26290-E0-00 |
US $49.63 |
||
|
30
|
30
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
