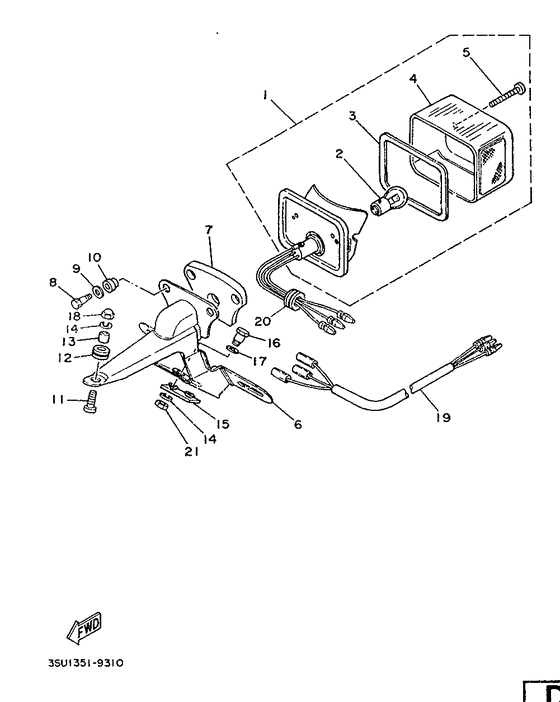

Taillight Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1M8-84510-E0-00
Taillight Unit Assy
|
1M8-84510-E0-00 |
— | ||
|
02
|
02
1M8-84514-41-00
Bulb
|
1M8-84514-41-00 |
— | ||
|
03
|
03
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
03
|
03
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
04
|
04
1M8-84521-40-00 Lens, Taillight |
1M8-84521-40-00 |
from US $37.89 |
||
| replacement | |||||
|
04
|
04
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
05
|
05
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
05
|
05
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
05
|
05
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
06
|
06
3SU-84551-00-00
Bracket, Licence
|
3SU-84551-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
1M1-84512-60-00 Seat, Base |
1M1-84512-60-00 |
from US $10.71 |
||
|
08
|
08
1M1-84526-60-00 Bolt |
1M1-84526-60-00 |
from US $1.98 |
||
| replacement | |||||
|
08
|
08
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
09
|
09
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
10
|
10
1M1-84527-60-00 Damper |
1M1-84527-60-00 |
from US $6.52 |
||
|
11
|
11
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
12
|
12
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
13
|
13
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.63 |
||
|
14
|
14
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
308-84553-00-00
Damper
|
308-84553-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
90109-06422-00
Bolt
|
90109-06422-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
929-01082-00-00
Washer, Plain
|
929-01082-00-00 |
— | ||
| replacements | |||||
|
17
|
17
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
17
|
17
92907-08200-00 Washer |
92907-08200-00 |
from US $1.36 |
||
|
18
|
18
95301-06800-00 Nut |
95301-06800-00 |
from US $0.90 |
||
| replacement | |||||
|
18
|
18
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
19
|
19
461-84517-00-00
Cord, Taillight
|
461-84517-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90480-12067-00 Grommet |
90480-12067-00 |
from US $3.68 |
||
|
21
|
21
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
