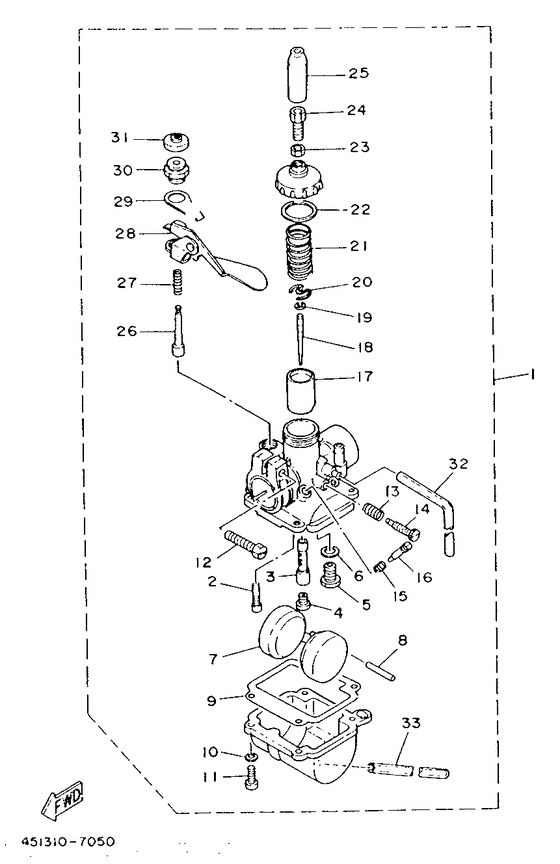

Carburetor Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-14301-60-00
Carburetor Assembly 1
|
451-14301-60-00 |
— | ||
|
02
|
02
367-14342-17-00
Jet, Pilot #34
|
367-14342-17-00 |
— | ||
|
03
|
03
288-14341-03-00
Nozzle, Main
|
288-14341-03-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
288-14343-42-00
Jet, Main #84
Ur |
288-14343-42-00 |
— | ||
|
04
|
04
288-14343-43-00
Jet, Main #86
Ur std |
288-14343-43-00 |
— | ||
|
04
|
04
288-14343-44-00
Jet, Main #88 (#88)
Ur |
288-14343-44-00 |
— | ||
|
05
|
05
367-14390-14-00 Needle Valve Assembly |
367-14390-14-00 |
from US $42.55 |
||
|
06
|
06
367-14195-00-00 Washer, Needle Valve |
367-14195-00-00 |
from US $3.40 |
||
|
07
|
07
367-14385-00-00 Float |
367-14385-00-00 |
from US $69.05 |
||
|
08
|
08
367-14386-00-00 Pin, Float |
367-14386-00-00 |
from US $4.86 |
||
|
09
|
09
367-14384-00-00 Gasket, Float Chamber |
367-14384-00-00 |
from US $16.45 |
||
| replacement | |||||
|
09
|
09
4U1-14384-00-00 Gskt, Float Chamber |
4U1-14384-00-00 |
from US $11.05 |
||
|
10
|
10
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
12
|
12
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
13
|
13
646-14212-00-00 Spring, Pilot Adjusting |
646-14212-00-00 |
from US $5.67 |
||
|
14
|
14
367-14211-00-00 Screw, Pilot Adjusting |
367-14211-00-00 |
US $23.66 |
||
| replacement | |||||
|
14
|
14
1YU-14103-00-00 Throttle Screw Set |
1YU-14103-00-00 |
from US $23.66 |
||
|
15
|
15
367-14337-00-00
Spring, Air Adjust
|
367-14337-00-00 |
— | ||
|
16
|
16
369-14323-00-00
Screw, Air Adjusting
|
369-14323-00-00 |
— | ||
|
17
|
17
367-14312-10-00
Valve, Throttle 1
|
367-14312-10-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
288-14336-03-00
Needle
|
288-14336-03-00 |
— | ||
| replacement | |||||
|
18
|
18
29J-1490J-00-00
Needle Set
|
29J-1490J-00-00 |
— | ||
|
19
|
19
288-14137-00-00 Clip |
288-14137-00-00 |
US $6.77 |
||
|
20
|
20
367-14136-02-00
Seat, Spring (367-14136-00)
|
367-14136-02-00 |
— | ||
|
21
|
21
367-14331-00-00
Spring, Thrtl Valve
|
367-14331-00-00 |
— | ||
|
22
|
22
367-14126-00-00
Gasket
|
367-14126-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
288-14161-00-00
Nut, Cable Adjusting
|
288-14161-00-00 |
— | ||
| replacement | |||||
|
23
|
23
85L-14161-00-00
Nut, Cable Adjusting
|
85L-14161-00-00 |
— | ||
|
24
|
24
288-14124-00-00
Screw, Cable Adjusting
|
288-14124-00-00 |
— | ||
|
25
|
25
367-14169-00-00
Cap
|
367-14169-00-00 |
— | ||
|
26
|
26
367-14371-00-00
Plunger,starter
|
367-14371-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
367-14335-00-00
Spring, Plunger
|
367-14335-00-00 |
— | ||
|
28
|
28
367-14375-01-00
Lever, Starter
|
367-14375-01-00 |
— | ||
|
29
|
29
367-14277-00-00
Sensor, Heat
|
367-14277-00-00 |
— | ||
|
30
|
30
367-14374-00-00
Plunger,starter
|
367-14374-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
367-14373-00-00
Cover, Plunger Cap
|
367-14373-00-00 |
— | ||
|
32
|
32
367-14348-00-00
Pipe 1
|
367-14348-00-00 |
— | ||
|
33
|
33
367-14396-00-00 Pipe |
367-14396-00-00 |
from US $5.38 |
||
