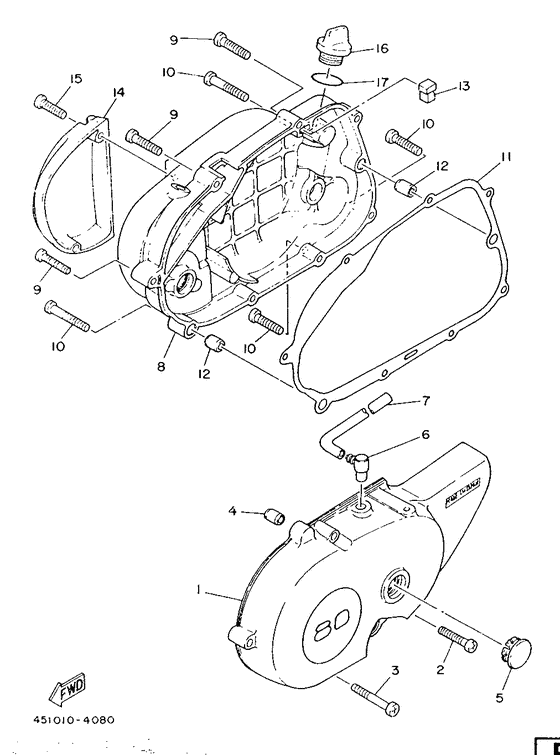

Crankcase cover 1 Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-15411-00-00
Cover, Crankcase L
|
451-15411-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
02
|
02
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
03
|
03
92503-06045-00 Screw, Pan Head (92503-06045-00 |
92503-06045-00 |
from US $4.25 |
||
| replacement | |||||
|
03
|
03
98580-06545-00 Screw, Pan Head (92503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
04
|
04
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
04
|
04
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
04
|
04
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
05
|
05
441-15417-01-00
Cover, Cap
|
441-15417-01-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
498-15371-00-00 Breather |
498-15371-00-00 |
from US $3.68 |
||
| replacement | |||||
|
06
|
06
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.34 |
||
|
07
|
07
90446-07009-00 Hose |
90446-07009-00 |
US $4.25 |
||
| replacement | |||||
|
07
|
07
90446-07349-00 Hose(3Xp) |
90446-07349-00 |
from US $4.25 |
||
|
08
|
08
353-15421-00-Y4
Cover, Crank Case (R.h)
Metallic silver |
353-15421-00-Y4 |
— | ||
| replacements | |||||
|
08
|
08
353-15421-00-00
Cover, Crankcase R
Metallic silver |
353-15421-00-00 |
— | ||
|
08
|
08
999-99999-99-00
Not Available
Metallic silver |
999-99999-99-00 |
— | ||
|
09
|
09
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
09
|
09
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
10
|
10
925-01060-40-00
Screw, Pan Head
|
925-01060-40-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.21 |
||
|
11
|
11
353-15451-00-00 Gasket, Crankcase Cover 1 |
353-15451-00-00 |
from US $20.54 |
||
| replacement | |||||
|
11
|
11
3MT-15451-00-00 Gasket, Crcs Cover |
3MT-15451-00-00 |
from US $20.54 |
||
|
12
|
12
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
12
|
12
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
12
|
12
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
13
|
13
353-15437-02-00
Scraper, Oil
|
353-15437-02-00 |
— | ||
|
14
|
14
353-15416-00-00 Cover, Oil Pump |
353-15416-00-00 |
US $39.44 |
||
|
15
|
15
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
16
|
16
353-15362-00-00
Plug, Oil Level
|
353-15362-00-00 |
— | ||
| replacement | |||||
|
16
|
16
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $17.14 |
||
|
17
|
17
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.70 |
||
