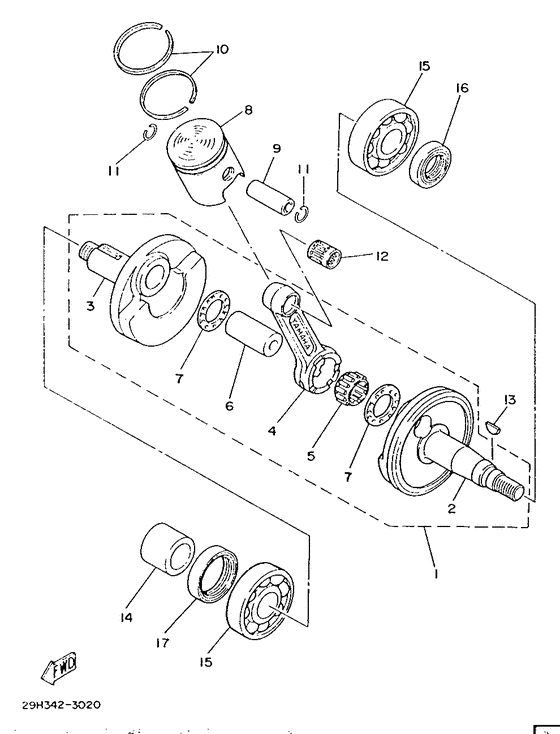

Crankshaft & Piston Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1K9-11400-00-00
Crankshaft Assembly
|
1K9-11400-00-00 |
— | ||
|
02
|
02
598-11412-00-00
Crank 1
|
598-11412-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
598-11422-00-00
Crank 2
|
598-11422-00-00 |
— | ||
|
04
|
04
3R1-11651-01-00 Rod, Connecting (3R1-11651-00 |
3R1-11651-01-00 |
from US $123.10 |
||
|
05
|
05
933-10418-T0-00
Bearing Cylinder #10
|
933-10418-T0-00 |
— | ||
| replacement | |||||
|
05
|
05
93310-418C4-00 Bearing Cylinder #10 |
93310-418C4-00 |
from US $19.69 |
||
|
06
|
06
257-11681-00-00
Pin, Crank 1
|
257-11681-00-00 |
— | ||
| replacement | |||||
|
06
|
06
257-11681-10-00 Pin, Crank 1 |
257-11681-10-00 |
from US $29.75 |
||
|
07
|
07
90209-11812-00
Washer
|
90209-11812-00 |
— | ||
|
08
|
08
367-11631-00-96 Piston StdUr |
367-11631-00-96 |
from US $95.33 |
||
| replacement | |||||
|
08
|
08
367-11631-11-96 Piston StdUr |
367-11631-11-96 |
from US $95.33 |
||
|
08
|
08
367-11631-00-98 Piston (Std)Ur |
367-11631-00-98 |
US $95.33 |
||
| replacement | |||||
|
08
|
08
367-11631-00-97 Pist0N (Std)Ur |
367-11631-00-97 |
US $69.56 |
||
|
08
|
08
367-11635-11-00 Piston 1 O/s 0.25Ap |
367-11635-11-00 |
from US $95.33 |
||
|
08
|
08
367-11636-11-00 Piston 2 O/s 0.50Ap |
367-11636-11-00 |
from US $95.33 |
||
|
09
|
09
527-11633-00-00 Pin, Piston |
527-11633-00-00 |
from US $5.96 |
||
|
10
|
10
367-11610-20-00 Piston Ringset 2NdPiston ring set (2nd o/s) Ap |
367-11610-20-00 |
from US $62.75 |
||
|
10
|
10
367-11610-00-00 Piston Ringset Std |
367-11610-00-00 |
from US $63.28 |
||
|
10
|
10
367-11610-10-00 Piston Ringset 1StPiston ring set (1st o/s) Ap |
367-11610-10-00 |
from US $63.28 |
||
|
11
|
11
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.34 |
||
|
12
|
12
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.35 |
||
|
13
|
13
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
14
|
14
90387-205E9-00 Collar |
90387-205E9-00 |
from US $12.33 |
||
|
15
|
15
93306-20453-00 Bearing |
93306-20453-00 |
from US $21.96 |
||
| replacements | |||||
|
15
|
15
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $28.19 |
||
|
15
|
15
93306-20458-00 Bearing |
93306-20458-00 |
from US $21.96 |
||
|
16
|
16
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
17
|
17
93103-28126-00 Oil Seal |
93103-28126-00 |
from US $7.65 |
||
| replacement | |||||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100) |
93103-28011-00 |
from US $5.96 |
||
