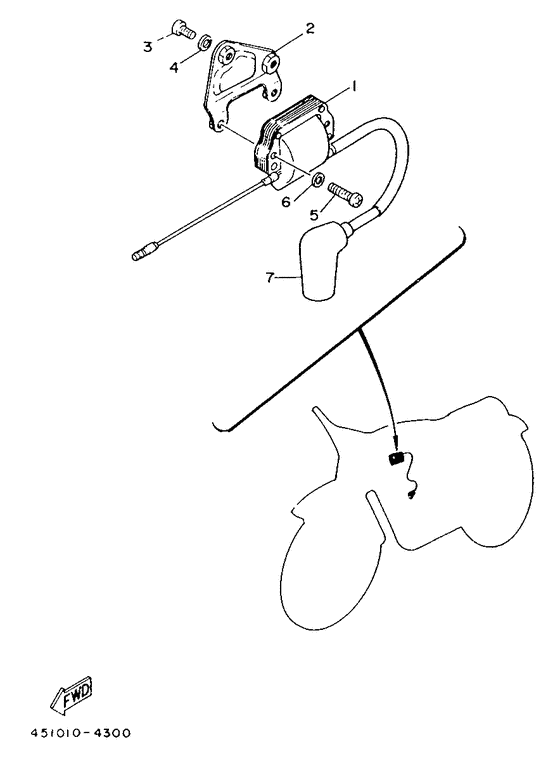

Electrical 1 Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
367-82310-30-00 Ignition Coil Assembly |
367-82310-30-00 |
from US $163.03 |
||
| replacement | |||||
|
01
|
01
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
02
|
02
336-82316-01-00
Bracket, Ignition Coil
|
336-82316-01-00 |
— | ||
|
03
|
03
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
04
|
04
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
04
|
04
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
04
|
04
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
05
|
05
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
05
|
05
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
06
|
06
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
06
|
06
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
06
|
06
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
07
|
07
437-82370-21-00 Plug Cap Assy |
437-82370-21-00 |
from US $16.43 |
||
| replacement | |||||
|
07
|
07
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
