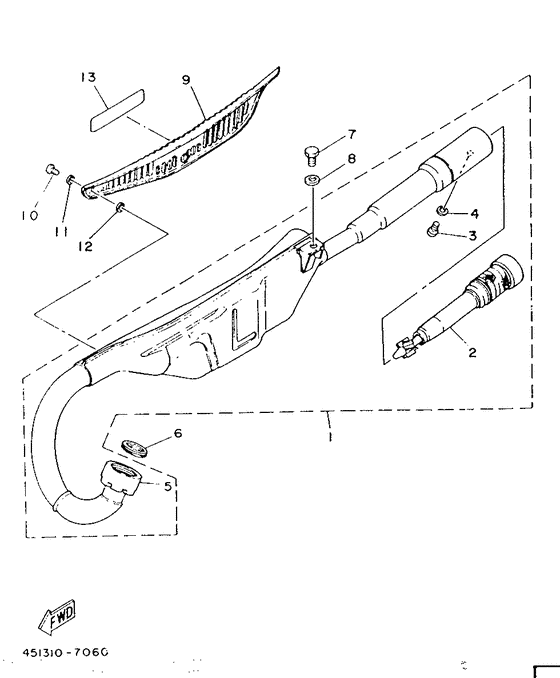

Exhaust Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-14610-30-00
Exhaust Pipe Assembly L
|
451-14610-30-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
451-14752-30-00
Pipe, Outlet
|
451-14752-30-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
03
|
03
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
04
|
04
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
04
|
04
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
05
|
05
1L4-14612-00-00 Nut, Ring |
1L4-14612-00-00 |
from US $15.73 |
||
|
06
|
06
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
06
|
06
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.53 |
||
|
07
|
07
97001-08025-00 Bolt (1Nv) |
97001-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
07
|
07
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
08
|
08
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
09
|
09
451-14718-30-36
Protector, Muffler 1
Clean white |
451-14718-30-36 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
Clean white |
999-99999-99-00 |
— | ||
|
10
|
10
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
10
|
10
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.21 |
||
|
10
|
10
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
11
|
11
902-02060-10-00
Washer Plate 178147660000
|
902-02060-10-00 |
— | ||
| replacement | |||||
|
11
|
11
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
12
|
12
90202-05005-00 Washer, Plate |
90202-05005-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
902-02051-88-00 Washer, Plate |
902-02051-88-00 |
from US $1.70 |
||
|
13
|
13
451-14729-31-00
Emblem, Protector
|
451-14729-31-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
