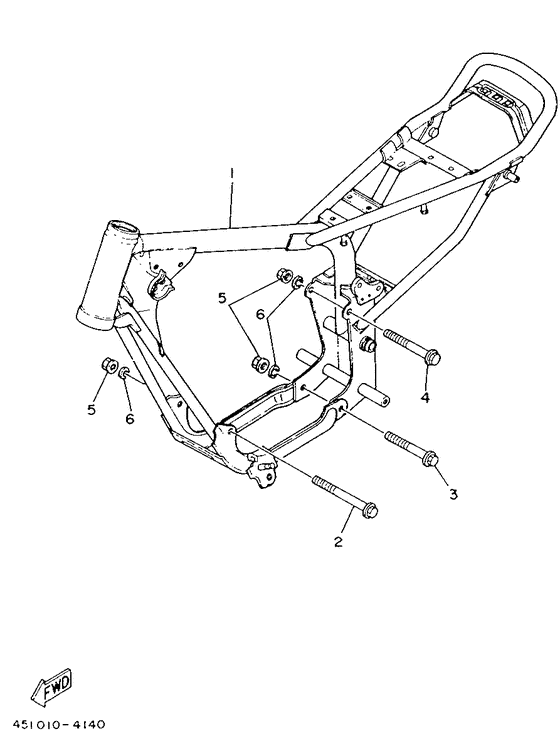

Frame Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-21110-01-35
Frame
Silver |
451-21110-01-35 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
02
|
02
95811-08090-00 Bolt, Flange (2K7) |
95811-08090-00 |
from US $5.24 |
||
| replacement | |||||
|
02
|
02
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
03
|
03
95821-08095-00 Bolt, Flange |
95821-08095-00 |
from US $3.40 |
||
| replacement | |||||
|
03
|
03
95817-08095-00 Bolt, Flange(8Bt) |
95817-08095-00 |
from US $3.40 |
||
|
04
|
04
95811-08120-00 Bolt, Flange (22W) |
95811-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
04
|
04
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
05
|
05
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
05
|
05
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
05
|
05
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
06
|
06
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
