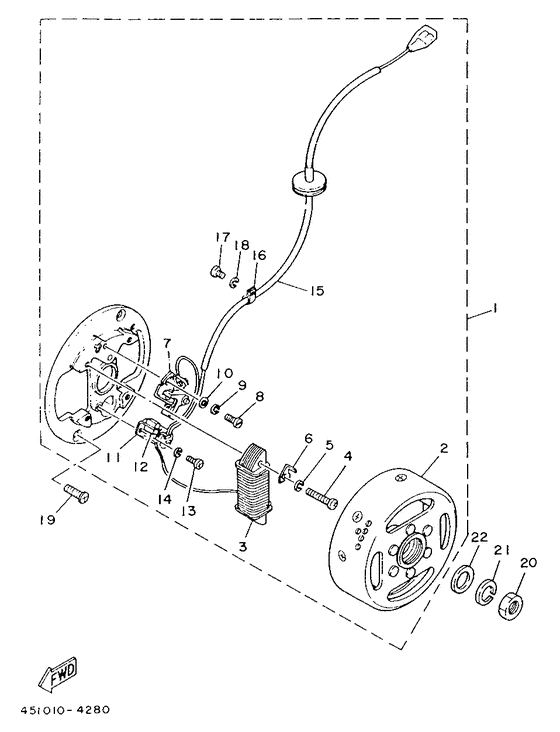

Generator Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-81300-20-00
Flywhl Magneto Assembly
|
451-81300-20-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
451-81350-20-00
Rotor Assembly
|
451-81350-20-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
451-81312-20-00
Coil, Source
|
451-81312-20-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
97602-04125-00 Screw, Pan Head With Washer |
97602-04125-00 |
US $1.21 |
||
| replacement | |||||
|
04
|
04
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
05
|
05
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
05
|
05
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
06
|
06
296-81332-20-00
Plate, Timing
|
296-81332-20-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
2A6-81321-20-00 Contact Brkr Assemblyassy |
2A6-81321-20-00 |
from US $56.34 |
||
|
08
|
08
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
09
|
09
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
11
|
11
296-81325-20-00 Condenser 1 |
296-81325-20-00 |
US $39.40 |
||
| replacement | |||||
|
11
|
11
296-81325-90-00 Condenser |
296-81325-90-00 |
US $39.40 |
||
|
12
|
12
116-81331-20-00 Lubricator |
116-81331-20-00 |
US $4.41 |
||
|
13
|
13
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
367-81315-20-00
Lead Wire Assembly
|
367-81315-20-00 |
— | ||
|
16
|
16
367-81328-20-00
Clamp
|
367-81328-20-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
985-01040-08-00
Screw, Pan Head
|
985-01040-08-00 |
— | ||
| replacement | |||||
|
17
|
17
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
18
|
18
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
19
|
19
98701-05016-00 Screw, Flat Head |
98701-05016-00 |
from US $1.42 |
||
| replacements | |||||
|
19
|
19
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
19
|
19
90151-05055-00 Screw, Countersunk(3Ac) |
90151-05055-00 |
from US $2.27 |
||
|
20
|
20
90170-12175-00 Nut |
90170-12175-00 |
from US $2.55 |
||
|
21
|
21
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
22
|
22
90201-12535-00 Washer, Plate |
90201-12535-00 |
from US $2.27 |
||
