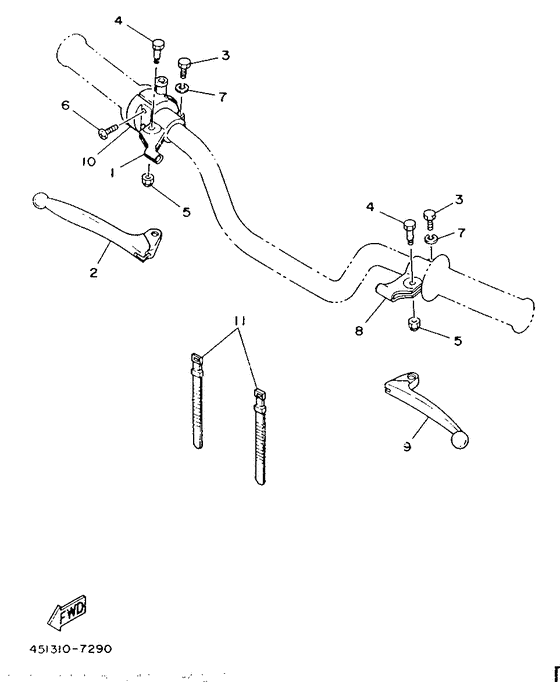

Handle switch & lever Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
02
|
02
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
03
|
03
90109-06796-00 Bolt |
90109-06796-00 |
from US $2.27 |
||
| replacement | |||||
|
03
|
03
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
04
|
04
90109-06796-00 Bolt |
90109-06796-00 |
from US $2.27 |
||
| replacement | |||||
|
04
|
04
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
05
|
05
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
05
|
05
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
06
|
06
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
06
|
06
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
07
|
07
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
08
|
08
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
09
|
09
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $20.12 |
||
|
10
|
10
462-83976-01-00
Switch, Handle 1
|
462-83976-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
11
|
11
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
