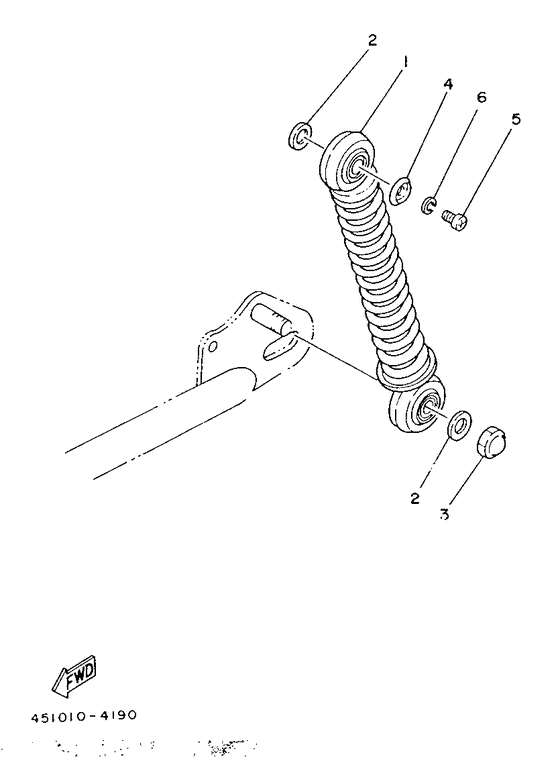

Rear suspension Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-22210-21-93
Shock Absorber Assy, Rear
|
451-22210-21-93 |
— | ||
| replacement | |||||
|
01
|
01
451-22210-21-00
Rear Cushion Assy
|
451-22210-21-00 |
— | ||
|
02
|
02
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
02
|
02
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
03
|
03
90176-10013-00 Nut, Crown |
90176-10013-00 |
from US $1.70 |
||
| replacements | |||||
|
03
|
03
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.56 |
||
|
03
|
03
90176-10073-00 Nut, Crown |
90176-10073-00 |
from US $1.66 |
||
|
04
|
04
90207-06009-00 Washer, Finish |
90207-06009-00 |
from US $7.37 |
||
|
05
|
05
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
06
|
06
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
