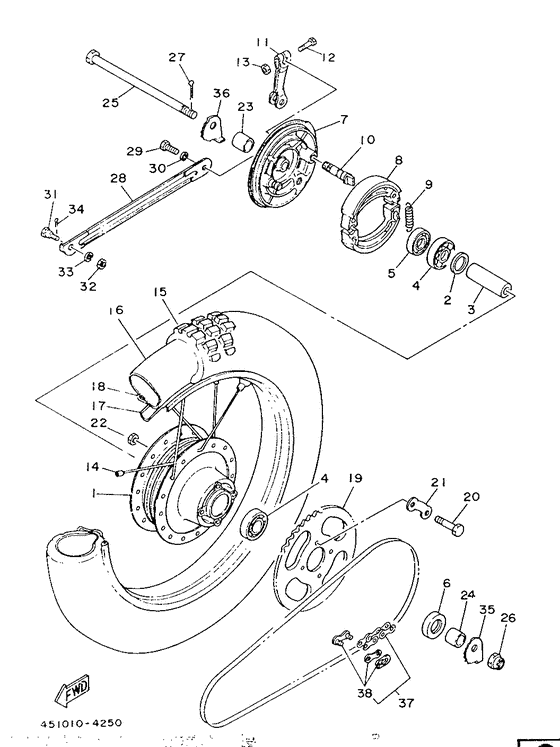

Rear wheel Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
288-25311-01-Y8
Hub, Rear
|
288-25311-01-Y8 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
102-25315-00-00 Flange, Spacer |
102-25315-00-00 |
from US $2.55 |
||
| replacement | |||||
|
02
|
02
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
03
|
03
90560-12170-00 Spacer |
90560-12170-00 |
from US $12.89 |
||
|
04
|
04
93306-30101-00 Bearing |
93306-30101-00 |
from US $9.78 |
||
|
05
|
05
93106-20002-00 Oil Seal |
93106-20002-00 |
from US $8.50 |
||
| replacement | |||||
|
05
|
05
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
06
|
06
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
07
|
07
451-25321-01-38
Plate, Brake Shoe
Clear buffing |
451-25321-01-38 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Clear buffing |
999-99999-99-00 |
— | ||
|
08
|
08
5G3-W2534-00-00
Brake Shoe Kit
|
5G3-W2534-00-00 |
— | ||
| replacement | |||||
|
08
|
08
4BE-W253E-00-00 Brake Shoe Kit |
4BE-W253E-00-00 |
from US $27.27 |
||
|
09
|
09
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
10
|
10
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
11
|
11
451-25355-00-00
Lever, Camshaft
|
451-25355-00-00 |
— | ||
|
12
|
12
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
13
|
13
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
14
|
14
367-25304-00-00
Spoke Set, Rear
|
367-25304-00-00 |
— | ||
|
15
|
15
94130-14328-00
300X14 Irc Trial
|
94130-14328-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
94236-14080-00 Tube |
94236-14080-00 |
US $19.44 |
||
| replacement | |||||
|
16
|
16
94208-14285-00 Tube |
94208-14285-00 |
US $26.66 |
||
|
17
|
17
94330-14037-00 Band, Rim |
94330-14037-00 |
from US $4.53 |
||
| replacement | |||||
|
17
|
17
94327-14076-00 Band, Rim (1.60-14) |
94327-14076-00 |
from US $4.53 |
||
|
18
|
18
944-14140-77-00
Rim 1.40X14
|
944-14140-77-00 |
— | ||
|
19
|
19
5J1-25441-20-33 Sprocket, Driven |
5J1-25441-20-33 |
from US $37.53 |
||
| replacement | |||||
|
19
|
19
5J1-25441-20-00 Sprocket, Drvn 41T (288-25441-1 |
5J1-25441-20-00 |
from US $41.47 |
||
|
20
|
20
90109-08319-00 Bolt |
90109-08319-00 |
from US $7.93 |
||
|
21
|
21
2A3-25412-00-00 Washer |
2A3-25412-00-00 |
from US $6.32 |
||
| replacement | |||||
|
21
|
21
2AL-25412-00-00 Washer |
2AL-25412-00-00 |
from US $6.66 |
||
|
22
|
22
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $1.84 |
||
|
23
|
23
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
24
|
24
90387-120F9-00 Collar |
90387-120F9-00 |
from US $5.13 |
||
|
25
|
25
367-25381-00-00 Axle, Wheel |
367-25381-00-00 |
from US $49.34 |
||
| replacement | |||||
|
25
|
25
367-25381-01-00 Axle, Wheel |
367-25381-01-00 |
from US $57.96 |
||
|
26
|
26
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
26
|
26
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
27
|
27
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
27
|
27
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
28
|
28
451-25371-01-00 Bar, Tension |
451-25371-01-00 |
US $24.48 |
||
|
29
|
29
970-11100-25-00
Bolt
|
970-11100-25-00 |
— | ||
| replacement | |||||
|
29
|
29
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
30
|
30
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
30
|
30
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
31
|
31
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
32
|
32
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
32
|
32
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
34
|
34
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
34
|
34
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
34
|
34
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
35
|
35
451-25388-01-00
Puller, Chain 1
|
451-25388-01-00 |
— | ||
|
36
|
36
451-25389-01-00
Puller, Chain 2
|
451-25389-01-00 |
— | ||
|
37
|
37
94580-52096-00 Chain (Did420M 96L) |
94580-52096-00 |
from US $20.97 |
||
| replacement | |||||
|
37
|
37
9Y5-80520-95-00 Chain, Drive |
9Y5-80520-95-00 |
from US $21.73 |
||
|
38
|
38
94680-52001-00 Joint, Chain(Did 420M)Daido |
94680-52001-00 |
from US $2.98 |
||
