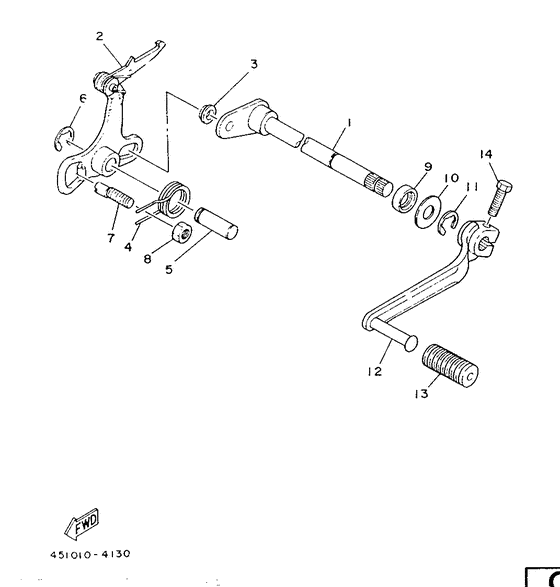

Shift shaft Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-18101-00-00
Shift Shaft Assy
|
451-18101-00-00 |
— | ||
| replacement | |||||
|
01
|
01
451-18101-01-00
Shift Shaft Assembly. 1
|
451-18101-01-00 |
— | ||
|
02
|
02
353-18120-00-00
Shift Lever Assembly
|
353-18120-00-00 |
— | ||
|
03
|
03
214-18178-00-00 Roller, Shift Lever |
214-18178-00-00 |
US $17.75 |
||
|
04
|
04
90508-32054-00 Spring, Torsion |
90508-32054-00 |
from US $3.85 |
||
|
05
|
05
367-18197-00-00
Shaft
|
367-18197-00-00 |
— | ||
|
06
|
06
99001-10600-00 Circlip |
99001-10600-00 |
from US $1.35 |
||
| replacement | |||||
|
06
|
06
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
07
|
07
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
08
|
08
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
08
|
08
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
08
|
08
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
09
|
09
93102-12106-00 Oil Seal (Sd 12-22-5 Hs) |
93102-12106-00 |
from US $2.98 |
||
| replacement | |||||
|
09
|
09
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.53 |
||
|
10
|
10
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.66 |
||
|
11
|
11
99001-10600-00 Circlip |
99001-10600-00 |
from US $1.35 |
||
| replacement | |||||
|
11
|
11
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
12
|
12
451-18111-01-93 Pedal, ShiftChrome-plated |
451-18111-01-93 |
from US $69.44 |
||
| replacement | |||||
|
12
|
12
2W5-18111-00-00 Pedal, ShiftChrome-plated |
2W5-18111-00-00 |
from US $57.96 |
||
|
13
|
13
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
14
|
14
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
