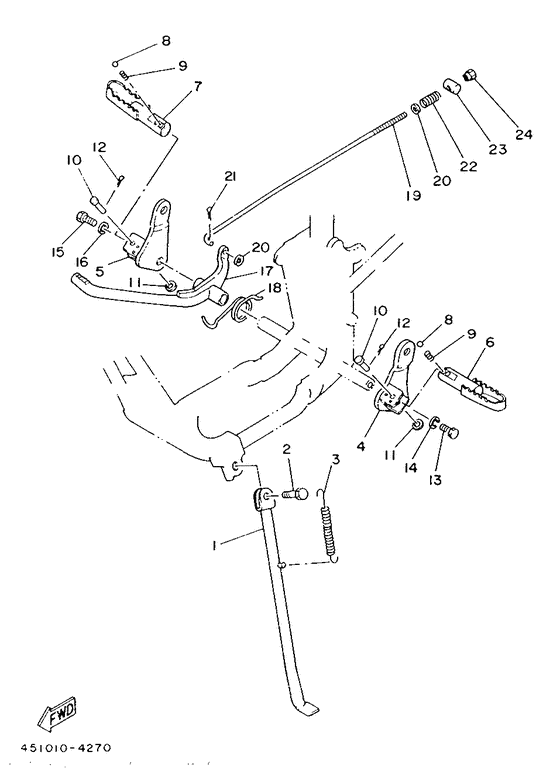

Stand & footrest Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-27311-01-35
Stand, Side
Silver |
451-27311-01-35 |
— | ||
|
02
|
02
90109-06404-00
Bolt
|
90109-06404-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
90506-25047-00 Spring, Tension |
90506-25047-00 |
from US $2.66 |
||
|
04
|
04
451-27412-00-35
Bracket, Footrest 1
Silver |
451-27412-00-35 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
05
|
05
451-27422-20-35
Bracket, Footrest 2
Silver |
451-27422-20-35 |
— | ||
|
06
|
06
451-27411-01-35
Footrest 1
Silver |
451-27411-01-35 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
07
|
07
451-27421-01-35
Footrest 2
Silver |
451-27421-01-35 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
08
|
08
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.66 |
||
|
09
|
09
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
10
|
10
91721-06028-00 Pin, Clevis |
91721-06028-00 |
from US $1.35 |
||
| replacement | |||||
|
10
|
10
917-02060-28-00 Pin, Clevis |
917-02060-28-00 |
from US $1.35 |
||
|
11
|
11
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
12
|
12
914-01160-12-00
Pin, Cotter
|
914-01160-12-00 |
— | ||
| replacement | |||||
|
12
|
12
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
13
|
13
97301-10014-00 Bolt, Hexagon |
97301-10014-00 |
US $4.53 |
||
| replacement | |||||
|
13
|
13
97027-10014-00 Bolt, Hexagon |
97027-10014-00 |
from US $4.53 |
||
|
14
|
14
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
14
|
14
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
15
|
15
97301-10014-00 Bolt, Hexagon |
97301-10014-00 |
US $4.53 |
||
| replacement | |||||
|
15
|
15
97027-10014-00 Bolt, Hexagon |
97027-10014-00 |
from US $4.53 |
||
|
16
|
16
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
16
|
16
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
17
|
17
451-27211-01-35
Pedal, Brake
Silver |
451-27211-01-35 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
18
|
18
90508-32056-00 Spring, Torsion |
90508-32056-00 |
from US $3.64 |
||
|
19
|
19
451-27231-00-00
Rod, Brake
|
451-27231-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
21
|
21
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
21
|
21
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
21
|
21
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
22
|
22
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
23
|
23
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
24
|
24
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
