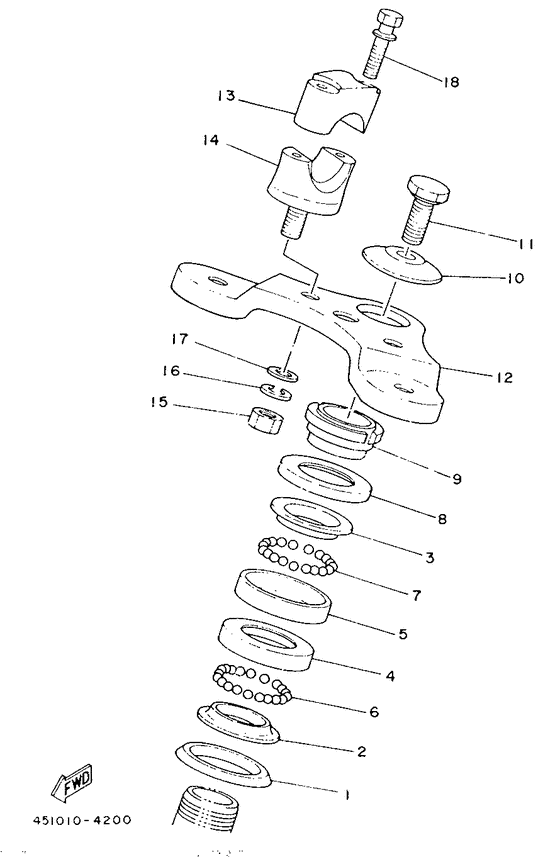

Steering Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.25 |
||
|
02
|
02
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
02
|
02
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
03
|
03
122-23411-00-00 Race, Ball 1 |
122-23411-00-00 |
from US $8.78 |
||
| replacements | |||||
|
03
|
03
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $8.78 |
||
|
03
|
03
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $6.30 |
||
|
04
|
04
122-23412-00-00 Race, Ball 2 |
122-23412-00-00 |
from US $7.93 |
||
| replacements | |||||
|
04
|
04
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $7.93 |
||
|
04
|
04
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.93 |
||
|
05
|
05
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
05
|
05
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
06
|
06
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
06
|
06
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
07
|
07
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
07
|
07
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
08
|
08
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
09
|
09
90179-25051-00 Nut |
90179-25051-00 |
from US $17.99 |
||
|
10
|
10
90209-10021-00 Washer |
90209-10021-00 |
US $4.53 |
||
| replacement | |||||
|
10
|
10
90209-10160-00 Washer (1Yj) |
90209-10160-00 |
from US $4.53 |
||
|
11
|
11
90105-10006-00 Bolt, Flange |
90105-10006-00 |
from US $3.32 |
||
| replacement | |||||
|
11
|
11
901-06100-46-00 Bolt(3Pp) |
901-06100-46-00 |
from US $6.17 |
||
|
12
|
12
451-23435-01-35
Crown, Handle
Silver |
451-23435-01-35 |
— | ||
|
13
|
13
122-23441-00-00 Holder,handle Upr |
122-23441-00-00 |
from US $14.20 |
||
| replacements | |||||
|
13
|
13
462-23441-01-00 Holder, Handle Upper |
462-23441-01-00 |
from US $17.87 |
||
|
13
|
13
5AU-23441-01-00 Holder, Handle Upper |
5AU-23441-01-00 |
from US $25.50 |
||
|
14
|
14
122-23442-02-00 Holder, Handle Lower |
122-23442-02-00 |
from US $17.87 |
||
| replacement | |||||
|
14
|
14
122-23442-03-00 Holder, Handle Lower |
122-23442-03-00 |
from US $14.40 |
||
|
15
|
15
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
16
|
16
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
16
|
16
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
17
|
17
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
18
|
18
90119-06017-00 Bolt, Hexagon |
90119-06017-00 |
from US $1.44 |
||
| replacement | |||||
|
18
|
18
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
