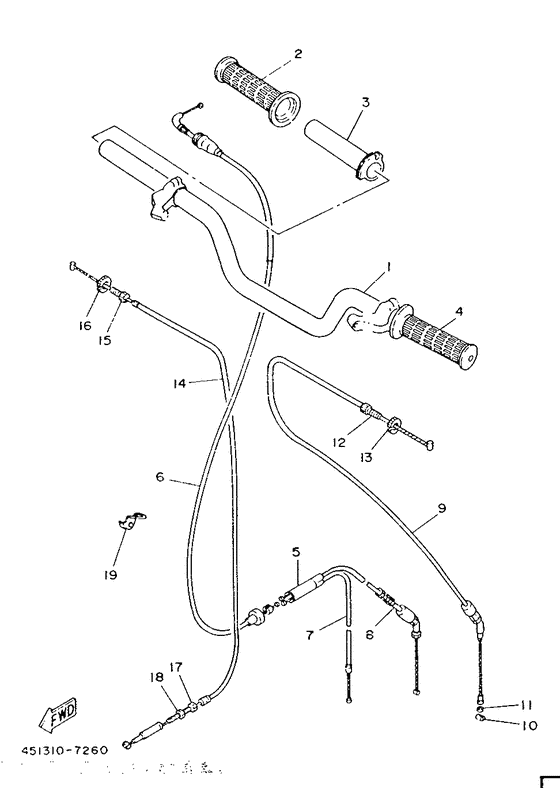

Steering handle & cable Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-26111-00-00
Handlebar
|
451-26111-00-00 |
— | ||
|
02
|
02
341-26242-01-00
Grip Rh
|
341-26242-01-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
434-26243-12-00 Tube, Throttle Guide |
434-26243-12-00 |
from US $11.05 |
||
|
04
|
04
341-26241-00-00
Grip Lh
|
341-26241-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
4U1-26261-00-00 Connector, Cable |
4U1-26261-00-00 |
from US $20.97 |
||
|
06
|
06
451-26311-00-00
Cable, Throttle 1
|
451-26311-00-00 |
— | ||
| replacement | |||||
|
06
|
06
451-26311-01-00
Cable, Throttle 1
|
451-26311-01-00 |
— | ||
|
07
|
07
451-26312-00-00
Throttle Cable 2
|
451-26312-00-00 |
— | ||
| replacement | |||||
|
07
|
07
451-26312-50-00
Wire, Throttle 2
|
451-26312-50-00 |
— | ||
|
08
|
08
451-26321-00-00
Cable, Pump
|
451-26321-00-00 |
— | ||
| replacement | |||||
|
08
|
08
451-26321-50-00
Cable, Pump
|
451-26321-50-00 |
— | ||
|
09
|
09
451-26335-01-00
Cable, clutch
|
451-26335-01-00 |
— | ||
|
10
|
10
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
|
11
|
11
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
12
|
12
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
12
|
12
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
12
|
12
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
13
|
13
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
13
|
13
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
14
|
14
451-26341-00-00
Cable, Brake
|
451-26341-00-00 |
— | ||
|
15
|
15
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
15
|
15
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
15
|
15
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
16
|
16
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
16
|
16
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
17
|
17
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
18
|
18
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
19
|
19
451-23318-00-00
Holder, Cable 1
|
451-23318-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
