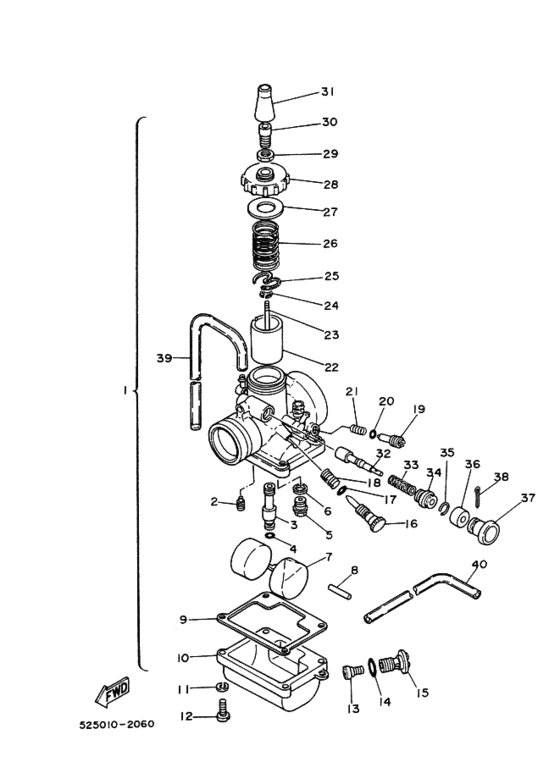

Carburetor Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-14101-61-00
Carburetor Assembly 1
|
525-14101-61-00 |
— | ||
|
2
|
2
260-14142-25-00 Jet, Pilot．．ジエツト，パイロツト ; ＃２５０ |
260-14142-25-00 |
from US $10.46 |
||
|
3
|
3
525-14141-30-00
Nozzle, Main
．ノズル，メイン; |
525-14141-30-00 |
— | ||
|
4
|
4
214-14147-00-00 O-Ring．Ｏ−リング; |
214-14147-00-00 |
from US $10.66 |
||
|
5
|
5
353-14190-18-00 Needle Valve Assembly (#1.8)．ニードルバルブアセンブリ; |
353-14190-18-00 |
from US $43.69 |
||
|
6
|
6
127-14195-00-00 Washer, Needle Valve．ワツシヤ，ニードルバルブ; |
127-14195-00-00 |
from US $2.98 |
||
|
7
|
7
525-14185-00-00
Float
．フロート; |
525-14185-00-00 |
— | ||
|
8
|
8
137-14186-01-00 Pin, Float．ピン，フロート; |
137-14186-01-00 |
from US $2.98 |
||
| replacement | |||||
|
8
|
8
127-14186-00-00 Pin, Float．ピン，フロート; |
127-14186-00-00 |
from US $2.98 |
||
|
9
|
9
304-14184-00-00 Gasket, Float Chamber．ガスケツト，フロートチヤンバ; |
304-14184-00-00 |
from US $2.98 |
||
|
10
|
10
493-14181-08-00
Body, Float Chamber 1
．ボデー，フロートチヤンバ １; |
493-14181-08-00 |
— | ||
|
11
|
11
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
985-01040-16-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01040-16-00 |
— | ||
| replacement | |||||
|
12
|
12
985-17040-16-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-17040-16-00 |
from US $1.13 |
||
|
13
|
13
137-14143-46-00
Jet, Main
．ジエツト，メイン ; ＃２３０; ＵＲ |
137-14143-46-00 |
— | ||
| replacement | |||||
|
13
|
13
137-14143-46-A1 Jet, Main (#230)．ジエツト，メイン ; ＃２３０; ＵＲ |
137-14143-46-A1 |
from US $12.80 |
||
|
13
|
13
137-14143-48-00 Jet, Main (#240)．ジエツト，メイン ; ＃２４０; ＵＲ ＳＴＤ |
137-14143-48-00 |
from US $12.58 |
||
| replacement | |||||
|
13
|
13
137-14143-48-A1 Jet, Main (#240)．ジエツト，メイン ; ＃２４０; ＵＲ ＳＴＤ |
137-14143-48-A1 |
from US $8.60 |
||
|
13
|
13
137-14143-50-00 Jet, Main (#250)．ジエツト，メイン ; ＃２５０; ＵＲ |
137-14143-50-00 |
from US $11.27 |
||
| replacement | |||||
|
13
|
13
137-14143-50-A1 Jet, Main (#250)．ジエツト，メイン ; ＃２５０; ＵＲ |
137-14143-50-A1 |
from US $13 |
||
|
14
|
14
93220-09001-00 O-Ring．Ｏ−リング; |
93220-09001-00 |
from US $6.28 |
||
|
15
|
15
493-14166-00-00
Bolt, Banjo
．ボルト，バンジヨ; |
493-14166-00-00 |
— | ||
|
16
|
16
493-14122-00-00
Screw, Throttle
．スクリユ，スロツトル; |
493-14122-00-00 |
— | ||
|
17
|
17
361-14144-00-00
Jet, Starter
．Ｏ−リング; |
361-14144-00-00 |
— | ||
|
18
|
18
493-14133-00-00 Spring, Throttle Stop．スプリング，スロツトルストツプ; |
493-14133-00-00 |
US $10.43 |
||
|
19
|
19
525-14123-00-00 Screw, Air Adjusting．スクリユ，エアアジヤステイング; |
525-14123-00-00 |
from US $14.65 |
||
| replacement | |||||
|
19
|
19
10W-14104-00-00 Air Screw Set．スクリユ，エアアジヤステイング; |
10W-14104-00-00 |
from US $16.47 |
||
|
20
|
20
354-14147-00-00 O-Ring．Ｏ−リング; |
354-14147-00-00 |
from US $8.78 |
||
|
21
|
21
174-14134-00-00 Spring, Air Adjusting．スプリング，エアアジヤステイング; |
174-14134-00-00 |
from US $7.79 |
||
|
22
|
22
304-14112-30-00
Valve, Throttle 1
．バルブ，スロツトル １; |
304-14112-30-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
．バルブ，スロツトル １; |
999-99999-99-00 |
— | ||
|
23
|
23
164-14116-06-00 Needle．ニードル; |
164-14116-06-00 |
from US $22.53 |
||
| replacement | |||||
|
23
|
23
18L-1490J-00-00 Needle．ニードル; |
18L-1490J-00-00 |
from US $22.53 |
||
|
24
|
24
164-14137-00-00
Clip
．クリツプ; |
164-14137-00-00 |
— | ||
| replacement | |||||
|
24
|
24
3FA-14137-00-00 Clip．クリツプ; |
3FA-14137-00-00 |
from US $2.69 |
||
|
25
|
25
137-14136-00-00 Seat, Spring．シート，スプリング; |
137-14136-00-00 |
US $16.20 |
||
|
26
|
26
3X3-14131-00-00 Spring, Thrtl Valve．スプリング，スロツトルバルブ; |
3X3-14131-00-00 |
from US $14.45 |
||
|
27
|
27
193-14126-00-00 Gasket．ガスケツト; |
193-14126-00-00 |
from US $3.26 |
||
|
28
|
28
525-14158-00-00
Top, Mixing Chamber
．トツプ，ミキシングチヤンバ; |
525-14158-00-00 |
— | ||
|
29
|
29
802-14161-00-00 Nut, Cable Adjusting．ナツト，ケーブルアジヤステイング; |
802-14161-00-00 |
from US $2 |
||
|
30
|
30
360-14124-20-00
Screw, Cable Adjusting
．スクリユ，ワイヤアジヤステイング; |
360-14124-20-00 |
— | ||
|
31
|
31
525-14169-00-00
Cap
．キヤツプ; |
525-14169-00-00 |
— | ||
|
32
|
32
304-14171-00-00
Plunger, Starter
．プランジヤ，スタータ; |
304-14171-00-00 |
— | ||
|
33
|
33
156-14135-00-00 Coil, Spring．スプリング，プランジヤ; |
156-14135-00-00 |
from US $7.79 |
||
|
34
|
34
152-14174-00-00 Cap, Plunger．キヤツプ，プランジヤ; |
152-14174-00-00 |
from US $27.49 |
||
|
35
|
35
353-14138-00-00 Clip, Plunger．クリツプ，プランジヤ; |
353-14138-00-00 |
from US $7.76 |
||
|
36
|
36
132-14173-00-00 Cover, Plunger Cap．カバー，プランジヤキヤツプ; |
132-14173-00-00 |
from US $8.08 |
||
|
37
|
37
304-14261-00-00 Holder．ホルダ; |
304-14261-00-00 |
from US $31.17 |
||
|
38
|
38
914-01160-15-00
Pin, Cotter
．ピン，コツタ; |
914-01160-15-00 |
— | ||
| replacement | |||||
|
38
|
38
914-90160-20-00 Pin, Cotter．ピン，コツタ; |
914-90160-20-00 |
from US $2.55 |
||
|
39
|
39
313-14197-00-00 Pipe, Airvent．パイプ; |
313-14197-00-00 |
US $4.82 |
||
| replacement | |||||
|
39
|
39
89A-14987-00-00 Hose．パイプ; |
89A-14987-00-00 |
from US $4.53 |
||
|
40
|
40
183-14196-00-00 Pipe, Airvent．パイプ; |
183-14196-00-00 |
from US $15.58 |
||
| replacement | |||||
|
40
|
40
23F-14197-00-00 Pipe, Airvent．パイプ; |
23F-14197-00-00 |
from US $15.58 |
||
