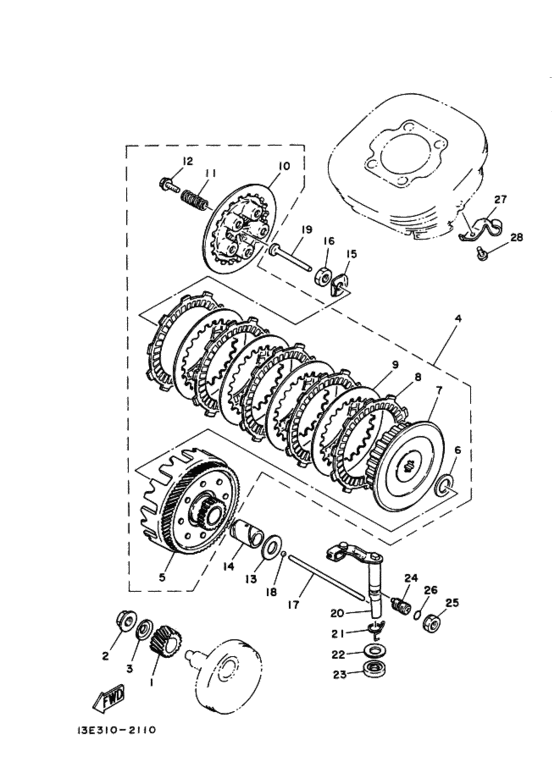

Clutch Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-16111-00-00
Gear, Pri Drive
ギア，プライマリドライブ ; １９Ｔ |
525-16111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
ギア，プライマリドライブ ; １９Ｔ |
999-99999-99-00 |
— | ||
|
2
|
2
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
2
|
2
90179-12659-00 Nut |
90179-12659-00 |
from US $1.70 |
||
|
3
|
3
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
from US $1.70 |
||
| replacement | |||||
|
3
|
3
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $2.20 |
||
|
4
|
4
525-16301-01-00
Clutch Assy
|
525-16301-01-00 |
— | ||
|
5
|
5
525-16150-00-00
Pri Driven Gear (74T)
．プライマリドリブンギアコンプリート ; ７４Ｔ |
525-16150-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
．プライマリドリブンギアコンプリート ; ７４Ｔ |
999-99999-99-00 |
— | ||
|
6
|
6
122-16164-00-00 Plate, Thrust 2．プレート，スラスト ２; |
122-16164-00-00 |
from US $7.79 |
||
|
7
|
7
525-16371-02-00
Boss, Clutch
．ボス，クラツチ; |
525-16371-02-00 |
— | ||
|
8
|
8
525-16321-00-00 Plate, Friction．プレート，フリクシヨン; |
525-16321-00-00 |
US $20.40 |
||
| replacement | |||||
|
8
|
8
537-16321-00-00 Plate, Friction．プレート，フリクシヨン; |
537-16321-00-00 |
from US $9.26 |
||
|
9
|
9
137-16325-70-00 Plate, Clutch 2．プレート，クラツチ ２; |
137-16325-70-00 |
from US $17.78 |
||
| replacement | |||||
|
9
|
9
137-16325-80-00 Plate, Clutch 2．プレート，クラツチ ２; |
137-16325-80-00 |
US $16.85 |
||
|
10
|
10
525-16351-00-00
Plate, Pressure 1
．プレート，プレツシヤー １; |
525-16351-00-00 |
— | ||
|
11
|
11
90501-20125-00 Spring, Compression．スプリング，コンプレツシヨン; |
90501-20125-00 |
from US $4.11 |
||
|
12
|
12
90159-05011-00 Screw, With Washer．スクリユ，ウイズワツシヤ; |
90159-05011-00 |
from US $1.70 |
||
|
13
|
13
90201-17543-00 Washer, Plateワツシヤ，プレート; |
90201-17543-00 |
from US $2.25 |
||
| replacement | |||||
|
13
|
13
90201-180P2-00 Washer, Plateワツシヤ，プレート; |
90201-180P2-00 |
from US $4.25 |
||
|
14
|
14
90560-17147-00 Spacerスペーサ; |
90560-17147-00 |
from US $18.42 |
||
|
15
|
15
90215-12211-00 Washer, Lock |
90215-12211-00 |
from US $1.70 |
||
|
16
|
16
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.41 |
||
|
17
|
17
1W1-16357-00-00
Rod, Push 2
|
1W1-16357-00-00 |
— | ||
|
18
|
18
93503-16010-00 Ball 3-16ボール; |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
18
|
18
93503-16003-00 Ballボール; |
93503-16003-00 |
from US $1.34 |
||
|
19
|
19
137-16356-00-00 Rod, Push 1 |
137-16356-00-00 |
from US $6.62 |
||
|
20
|
20
525-16380-00-00 Push Lever Assemblyプツシユレバーアセンブリ; |
525-16380-00-00 |
US $103.36 |
||
|
21
|
21
90508-14132-00 Spring, Torsionスプリング，トーシヨン; |
90508-14132-00 |
US $4.99 |
||
|
22
|
22
90201-14217-00 Washer, Plateワツシヤ，プレート; |
90201-14217-00 |
from US $1.70 |
||
|
23
|
23
93104-14004-00 Oil Sealオイルシール; |
93104-14004-00 |
from US $6.66 |
||
| replacement | |||||
|
23
|
23
93104-14059-00 Oil Sealオイルシール; |
93104-14059-00 |
from US $4.30 |
||
|
24
|
24
90149-12097-00
Screw
|
90149-12097-00 |
— | ||
|
25
|
25
90179-12197-00
Nut
|
90179-12197-00 |
— | ||
| replacements | |||||
|
25
|
25
90179-12657-00 Nut |
90179-12657-00 |
from US $6.52 |
||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.70 |
||
|
27
|
27
525-15441-01-00
Holder, Clutch Cable
ホルダ，クラツチケーブル; |
525-15441-01-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
ホルダ，クラツチケーブル; |
999-99999-99-00 |
— | ||
|
28
|
28
97301-06012-00 Bolt |
97301-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
28
|
28
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
28
|
28
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
