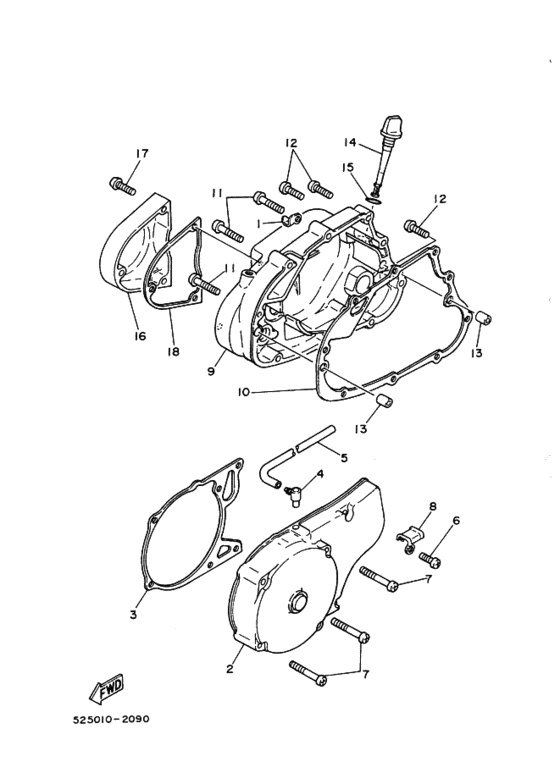

Crankcase cover assy Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90465-10074-00
Clamp
|
90465-10074-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
525-15411-00-00
Cover, Crankcase L
カバー，クランクケース １; |
525-15411-00-00 |
— | ||
|
3
|
3
525-15455-00-00 Gasket 1ガスケツト，クランクケースカバー; |
525-15455-00-00 |
from US $19.69 |
||
| replacement | |||||
|
3
|
3
525-15455-10-00 Gasket, Crankcase Cover Lガスケツト，クランクケースカバー; |
525-15455-10-00 |
from US $14.25 |
||
|
4
|
4
498-15371-00-00 Breatherブリーザ; |
498-15371-00-00 |
from US $3.68 |
||
| replacement | |||||
|
4
|
4
583-15371-00-00 Breatherブリーザ; |
583-15371-00-00 |
from US $1.34 |
||
|
5
|
5
90445-07177-00 Hoseホース; |
90445-07177-00 |
US $4.39 |
||
| replacement | |||||
|
5
|
5
90445-07MF1-00 Hose (L570)ホース; |
90445-07MF1-00 |
from US $4.39 |
||
|
6
|
6
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
7
|
7
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
7
|
7
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
8
|
8
90461-10016-00 Clamp |
90461-10016-00 |
US $9.05 |
||
|
9
|
9
525-15431-00-00
Cover, Crankcase 3
カバー，クランクケース ３; |
525-15431-00-00 |
— | ||
|
10
|
10
401-15451-00-00 Gasket, Crankcase Cover 1ガスケツト，クランクケースカバー; |
401-15451-00-00 |
from US $13.45 |
||
| replacement | |||||
|
10
|
10
3UL-15451-00-00 Gasket, Crankcase Cover 1ガスケツト，クランクケースカバー; |
3UL-15451-00-00 |
from US $17.57 |
||
|
11
|
11
92501-06035-00 Screw, Pan Head |
92501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
11
|
11
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
11
|
11
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
12
|
12
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
13
|
13
91830-21014-00 Pin, Dowel |
91830-21014-00 |
from US $1.07 |
||
| replacements | |||||
|
13
|
13
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
13
|
13
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
14
|
14
525-15362-01-00
Plug, Oil Level
|
525-15362-01-00 |
— | ||
|
15
|
15
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
15
|
15
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
16
|
16
525-15416-00-00
Cover, Oil Pump
カバー，オイルポンプ; |
525-15416-00-00 |
— | ||
|
17
|
17
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
18
|
18
402-15456-00-00 Gasket, Oil Pump Cover 1ガスケツト，オイルポンプカバー １; |
402-15456-00-00 |
from US $5.62 |
||
| replacement | |||||
|
18
|
18
3UL-15456-01-00 Gasket, Oil Pump Cover 1ガスケツト，オイルポンプカバー １; |
3UL-15456-01-00 |
from US $10.06 |
||
