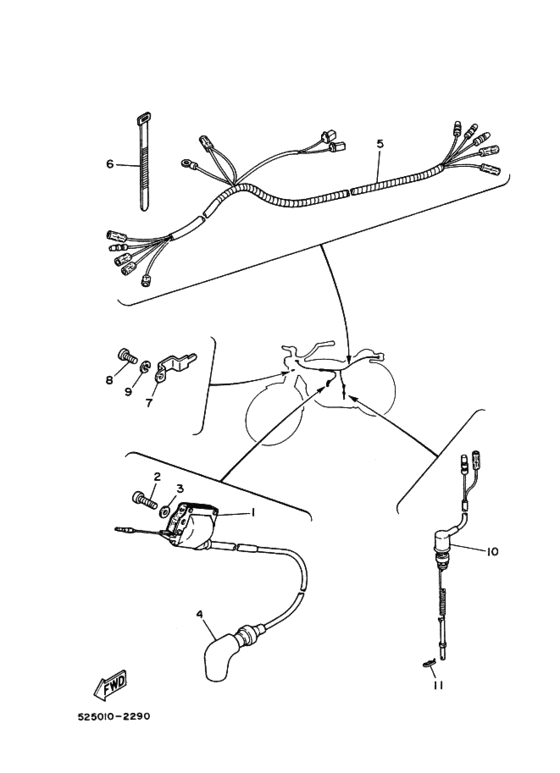

Electrical 1 Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-82310-40-00 Ignition Coil Assy |
525-82310-40-00 |
from US $151.70 |
||
| replacement | |||||
|
1
|
1
1Y8-82310-40-00 Ignition Coil Assembly |
1Y8-82310-40-00 |
from US $151.70 |
||
|
2
|
2
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
3
|
3
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
3
|
3
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
3
|
3
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
3
|
3
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
4
|
4
3R0-82370-20-00 Plug Cap Assy |
3R0-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
4
|
4
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
5
|
5
525-82590-50-00
Wire Harness Assembly
ワイヤハーネスアセンブリ; |
525-82590-50-00 |
— | ||
|
6
|
6
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
6
|
6
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
6
|
6
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
7
|
7
90462-08022-00
Clamp
|
90462-08022-00 |
— | ||
|
8
|
8
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
9
|
9
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
9
|
9
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
525-82530-01-00
Stop Switch Assy
|
525-82530-01-00 |
— | ||
|
11
|
11
437-83525-00-00 Clip |
437-83525-00-00 |
US $1.84 |
||
| replacement | |||||
|
11
|
11
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
