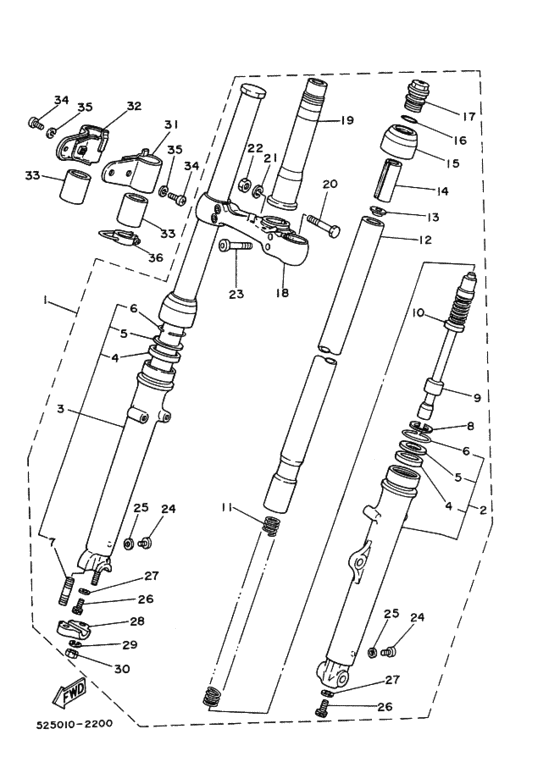

Front fork Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-23101-01-00
Front Fork Assembly
フロントフオークアセンブリ; |
525-23101-01-00 |
— | ||
|
2
|
2
525-23126-00-00
Tube, Outer 1
．チユーブ，アウタ １; |
525-23126-00-00 |
— | ||
|
3
|
3
525-23136-00-00
Tube, Outer 2
．チユーブ，アウタ ２; |
525-23136-00-00 |
— | ||
|
4
|
4
137-23145-01-00 Oil Seal．．オイルシール; |
137-23145-01-00 |
from US $47.66 |
||
|
5
|
5
315-23146-50-00
Washer, Oil Seal
．．ワツシヤ，オイルシール; |
315-23146-50-00 |
— | ||
|
6
|
6
315-23156-50-00
Clip, Oil Seal
．．クリツプ，オイルシール; |
315-23156-50-00 |
— | ||
|
7
|
7
90116-08261-00 Bolt, Stud．．ボルト，スタツド; |
90116-08261-00 |
from US $1.33 |
||
|
8
|
8
535-23183-01-00
Circlip
．サークリツプ; |
535-23183-01-00 |
— | ||
|
9
|
9
535-23171-00-00
Piston, Front Fork
．ピストン，フロントフオーク; |
535-23171-00-00 |
— | ||
|
10
|
10
525-23170-00-00
Cylinder, Frtfrk
．シリンダコンプリート，フロントフオーク; |
525-23170-00-00 |
— | ||
|
11
|
11
525-23141-01-00
Spring, Front Fork
．スプリング，フロントフオーク; |
525-23141-01-00 |
— | ||
|
12
|
12
525-23124-00-00
Tube, Inner 1
．チユーブ，インナ １; |
525-23124-00-00 |
— | ||
|
13
|
13
437-23117-01-00
Guide, Spring
．ガイド，スプリング; |
437-23117-01-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
．ガイド，スプリング; |
999-99999-99-00 |
— | ||
|
14
|
14
315-23118-50-00
Spacer
．スペーサ; |
315-23118-50-00 |
— | ||
|
15
|
15
535-23144-00-00 Seal, Dust．シール，ダスト; |
535-23144-00-00 |
from US $14.22 |
||
| replacement | |||||
|
15
|
15
535-F3144-00-00
Seal Dust (535-23144-00) Dt100
．シール，ダスト; |
535-F3144-00-00 |
— | ||
|
16
|
16
146-23114-00-00 Packing．ガスケツト; |
146-23114-00-00 |
from US $13.74 |
||
|
17
|
17
2K5-23111-00-00
Bolt, Cap
．ボルトキヤツプ; |
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
．ボルトキヤツプ; |
999-99999-99-00 |
— | ||
|
18
|
18
525-23345-00-00
Bracket, Lower
．ブラケツト，ロワー; |
525-23345-00-00 |
— | ||
|
19
|
19
516-23341-31-00
Shaft, Steering
．シヤフト，ステアリング; |
516-23341-31-00 |
— | ||
|
20
|
20
322-23356-00-00
Bolt 2
．ボルト ２; |
322-23356-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
．ボルト ２; |
999-99999-99-00 |
— | ||
|
21
|
21
92901-10100-00 Washer, Spring．ワツシヤ，スプリング; |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
21
|
21
92990-10100-00 Ybs67-10 Washer, Spring．ワツシヤ，スプリング; |
92990-10100-00 |
from US $1.34 |
||
|
22
|
22
322-23357-00-00
Nut
．ナツト; |
322-23357-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
．ナツト; |
999-99999-99-00 |
— | ||
|
23
|
23
322-23346-00-00
Bolt 1
．ボルト １; |
322-23346-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
．ボルト １; |
999-99999-99-00 |
— | ||
|
24
|
24
122-23119-01-00 Plug, Drain．プラグ，ドレーン; |
122-23119-01-00 |
US $1.56 |
||
| replacements | |||||
|
24
|
24
98517-04006-00 Screw, Pan Head．プラグ，ドレーン; |
98517-04006-00 |
from US $1.28 |
||
|
24
|
24
985-11040-06-00
Screw, Pan Head (98502-04006)
．プラグ，ドレーン; |
985-11040-06-00 |
— | ||
|
25
|
25
122-23129-00-00 Gasket, Drain Plug．ガスケツト，ドレーンプラグ; |
122-23129-00-00 |
from US $3.26 |
||
|
26
|
26
913-11080-20-00
Bolt, Hexagon Socket Head
．ボルト; |
913-11080-20-00 |
— | ||
| replacement | |||||
|
26
|
26
91314-08020-00 Bolt, Hexagon Socket Head．ボルト; |
91314-08020-00 |
from US $1.42 |
||
|
27
|
27
214-23158-00-00
Gasket
．ガスケツト; |
214-23158-00-00 |
— | ||
|
28
|
28
315-23167-51-00
Holder, Axle
．ホルダ，アクスル; |
315-23167-51-00 |
— | ||
|
29
|
29
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
30
|
30
90170-08176-00 Nut, Hexagon．ナツト; |
90170-08176-00 |
US $3.40 |
||
| replacement | |||||
|
30
|
30
90170-08158-00 Nut, Hexagon (509)．ナツト; |
90170-08158-00 |
from US $1.84 |
||
|
31
|
31
525-23121-00-93
Cover, Upper 1
カバー，アツパ １; クロムメツキ |
525-23121-00-93 |
— | ||
|
32
|
32
525-23131-00-93
Cover, Upper 2
カバー，アツパ ２; クロムメツキ |
525-23131-00-93 |
— | ||
|
33
|
33
525-23163-00-00
Gasket
|
525-23163-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
92501-06018-00 Screw, Pan Head |
92501-06018-00 |
US $3.26 |
||
| replacement | |||||
|
34
|
34
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
35
|
35
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
35
|
35
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
36
|
36
525-23318-01-00
Holder, Cable 1
ホルダ，ケーブル １; |
525-23318-01-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
ホルダ，ケーブル １; |
999-99999-99-00 |
— | ||
