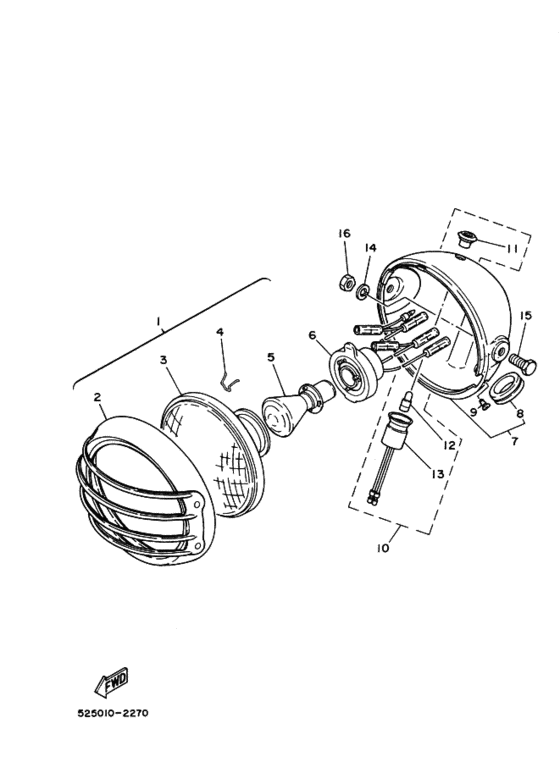

Headlight Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-84110-61-00
Headlight Unit Assy
|
525-84110-61-00 |
— | ||
|
2
|
2
493-84115-60-00
Rim, Headlight
．リム，ヘツドライト; |
493-84115-60-00 |
— | ||
|
3
|
3
525-84120-60-00
Lens Assembly
．レンズアセンブリ; |
525-84120-60-00 |
— | ||
|
4
|
4
195-84324-00-00 Spring, Reflector．スプリング，リフレクタセツト; |
195-84324-00-00 |
from US $3.40 |
||
|
5
|
5
359-84114-00-00 Bulb, Hl6V25/25W (251-84114-00)．バルブ ; ６Ｖ−２５／２５Ｗ |
359-84114-00-00 |
from US $6.23 |
||
|
6
|
6
214-84112-61-00 Socket．ソケツト; |
214-84112-61-00 |
US $81.68 |
||
|
7
|
7
434-84130-61-36
Body Assy, Headlight
ホワイト |
434-84130-61-36 |
— | ||
| replacement | |||||
|
7
|
7
539-84130-00-36
Body Assembly, Headlight
ホワイト |
539-84130-00-36 |
— | ||
|
8
|
8
150-84153-00-00 Grommet, Wrhrnes．グロメツト，ワイヤハーネス; |
150-84153-00-00 |
from US $14.45 |
||
|
9
|
9
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
10
|
10
214-84101-61-00
Pilot Light Assembly
|
214-84101-61-00 |
— | ||
|
11
|
11
256-84357-61-00
Body, Pilot Light
．ボデー，パイロツトライト; |
256-84357-61-00 |
— | ||
|
12
|
12
104-83517-10-00 Bulb．．バルブ ; ６Ｖ−１５Ｗ |
104-83517-10-00 |
from US $4.53 |
||
|
13
|
13
214-84150-61-00
Socket Cord Assembly 2
．ソケツトコードアセンブリ ２; |
214-84150-61-00 |
— | ||
|
14
|
14
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
15
|
15
97303-08020-00 Bolt |
97303-08020-00 |
from US $2.09 |
||
| replacement | |||||
|
15
|
15
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.54 |
||
|
16
|
16
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
16
|
16
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
16
|
16
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
