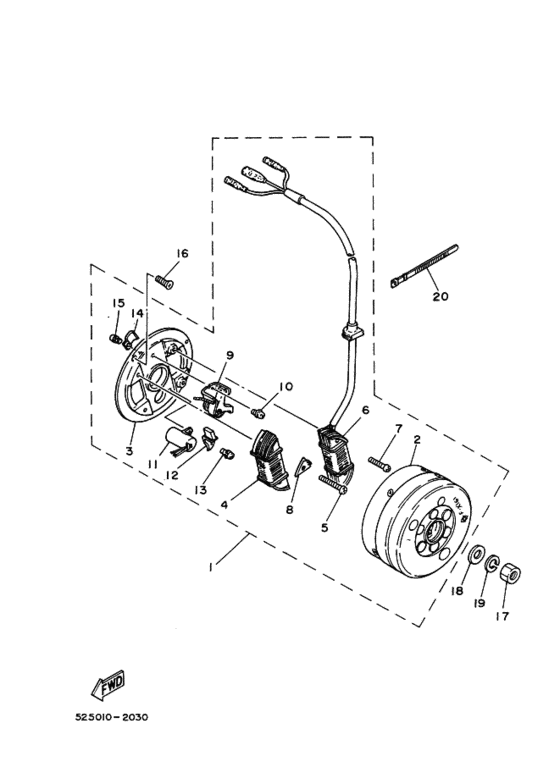

ﾌﾗｲﾎｲｰﾙﾏｸﾞﾈﾄｳ Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-81300-11-00
Flywhl Magneto Assembly
フライホイールマグネトアセンブリ; |
525-81300-11-00 |
— | ||
|
2
|
2
525-81350-10-00
Rotor Assembly
．ロータアセンブリ; |
525-81350-10-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
．ロータアセンブリ; |
999-99999-99-00 |
— | ||
|
3
|
3
525-81309-10-00
Base, Magneto
．ベース，マグネト; |
525-81309-10-00 |
— | ||
|
4
|
4
461-81312-10-00
Coil, Source
．コイル，ソース; |
461-81312-10-00 |
— | ||
|
5
|
5
985-01050-35-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01050-35-00 |
— | ||
| replacements | |||||
|
5
|
5
98507-05035-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05035-00 |
from US $1.42 |
||
|
5
|
5
98580-05035-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05035-00 |
from US $3.40 |
||
|
6
|
6
525-81313-10-00
Coil, Lighting 1
．コイル，ライテイング １; |
525-81313-10-00 |
— | ||
|
7
|
7
98501-05025-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-05025-00 |
US $1.35 |
||
| replacement | |||||
|
7
|
7
985-80055-25-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-80055-25-00 |
from US $1.33 |
||
|
8
|
8
434-81332-10-00
Plate, Timing
．プレート，タイミング; |
434-81332-10-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
．プレート，タイミング; |
999-99999-99-00 |
— | ||
|
9
|
9
434-81321-10-00 Contact Brkr Assembly．コンタクトブレーカアセンブリ; |
434-81321-10-00 |
from US $66.98 |
||
|
10
|
10
110-81346-21-00 Screw, Pan Head．スクリユ，パンヘツド; |
110-81346-21-00 |
from US $4.39 |
||
|
11
|
11
207-81326-10-00 Condenser 2．コンデンサ ２; |
207-81326-10-00 |
US $29.83 |
||
| replacement | |||||
|
11
|
11
207-81326-90-00 Condenser 2．コンデンサ ２; |
207-81326-90-00 |
US $29.83 |
||
|
12
|
12
207-81331-10-00 Lubricator．ルブリケータ; |
207-81331-10-00 |
US $6.52 |
||
|
13
|
13
164-81246-21-00 Screw, Pan Head．スクリユ，パンヘツド; |
164-81246-21-00 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
98580-04008-00 Screw, Pan Head (713)．スクリユ，パンヘツド; |
98580-04008-00 |
from US $1.21 |
||
|
14
|
14
109-81328-11-00
Clamp
．クランプ; |
109-81328-11-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
．クランプ; |
999-99999-99-00 |
— | ||
|
15
|
15
110-81345-21-00 Screw, Pan Head．スクリユ，パンヘツド; |
110-81345-21-00 |
US $1.56 |
||
| replacement | |||||
|
15
|
15
98517-04006-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04006-00 |
from US $1.28 |
||
|
16
|
16
92701-06012-00 Screw, Flat Head |
92701-06012-00 |
from US $2.41 |
||
| replacement | |||||
|
16
|
16
98707-06012-00 Screw, Flat Head |
98707-06012-00 |
from US $2.09 |
||
|
17
|
17
90170-12181-00 Nut, Hexagon (525) |
90170-12181-00 |
from US $2.13 |
||
|
18
|
18
90201-12593-00 Washer, Plateワツシヤ，プレート; |
90201-12593-00 |
from US $4.53 |
||
|
19
|
19
929-01121-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01121-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-12100-00 Washer, Springワツシヤ，スプリング; |
92990-12100-00 |
from US $2.55 |
||
|
20
|
20
168-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
168-83936-01-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.56 |
||
