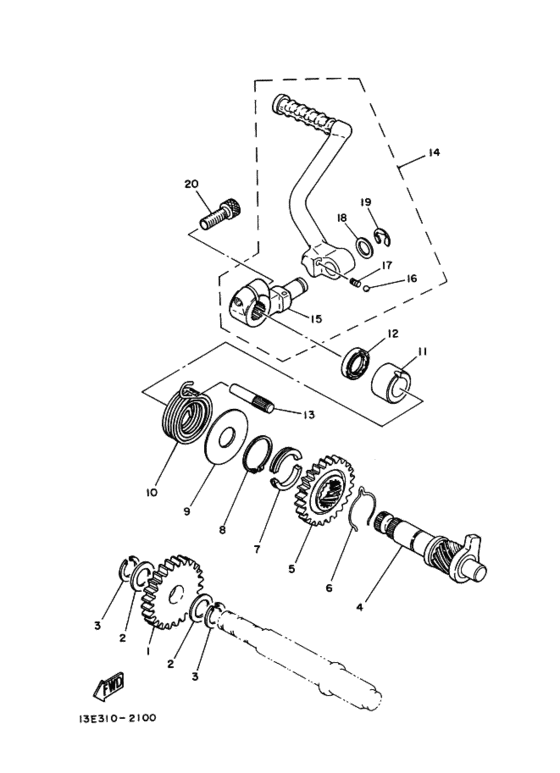

ｷﾂｸｽﾀｰﾀ Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-15651-00-00 Gear, Kick Idle (25T)ギア，キツクアイドル ; ２５Ｔ |
525-15651-00-00 |
from US $44.76 |
||
|
2
|
2
137-17417-00-05 Shim 1 (0.5T)．シム １ ; ０５Ｔ |
137-17417-00-05 |
from US $3.12 |
||
|
3
|
3
934-40150-12-00
Circlip
サークリツプ; |
934-40150-12-00 |
— | ||
| replacement | |||||
|
3
|
3
99009-15400-00 Circlip(1Ar)サークリツプ; |
99009-15400-00 |
from US $1.07 |
||
|
4
|
4
525-15660-01-00 Kick Axle Assembly |
525-15660-01-00 |
US $184.72 |
||
|
5
|
5
315-15641-00-00 Gear, Kickギア，キツク ; ２７Ｔ |
315-15641-00-00 |
from US $59.13 |
||
|
6
|
6
90468-26048-00 Clip |
90468-26048-00 |
from US $1.84 |
||
|
7
|
7
248-15654-00-00 Holder, Kick Gear |
248-15654-00-00 |
from US $9.21 |
||
|
8
|
8
93410-30012-00 Clipサークリツプ; |
93410-30012-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
99009-30400-00 Circlipサークリツプ; |
99009-30400-00 |
from US $1.56 |
||
|
9
|
9
401-15676-00-00 Cover, Springカバー，スプリング; |
401-15676-00-00 |
from US $2.98 |
||
|
10
|
10
90508-26041-00 Spring, Torsionスプリング，トーシヨン; |
90508-26041-00 |
from US $8.93 |
||
|
11
|
11
1W1-15666-00-00 Spacerスペーサ; |
1W1-15666-00-00 |
from US $11.05 |
||
|
12
|
12
93101-17062-00 Oil Sealオイルシール; |
93101-17062-00 |
from US $8.22 |
||
|
13
|
13
257-15668-00-00 Stopper |
257-15668-00-00 |
from US $3.67 |
||
|
14
|
14
525-15620-01-00
Kick Crank Assy
|
525-15620-01-00 |
— | ||
|
15
|
15
525-15621-01-00
Boss, Kick Crank
．ボス，キツククランク; |
525-15621-01-00 |
— | ||
|
16
|
16
93507-32009-00 Ball 7-32．ボール; |
93507-32009-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
93507-32031-00 Ball 7-32．ボール; |
93507-32031-00 |
from US $1.66 |
||
|
17
|
17
90501-12081-00 Spring, Compression．スプリング，コンプレツシヨン; |
90501-12081-00 |
from US $1.56 |
||
|
18
|
18
90201-12541-00 Washer, Plate．ワツシヤ，プレート; |
90201-12541-00 |
from US $3.26 |
||
|
19
|
19
93430-08007-00 Circlip, E-Type．サークリツプ; |
93430-08007-00 |
from US $1.66 |
||
|
20
|
20
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.07 |
||
