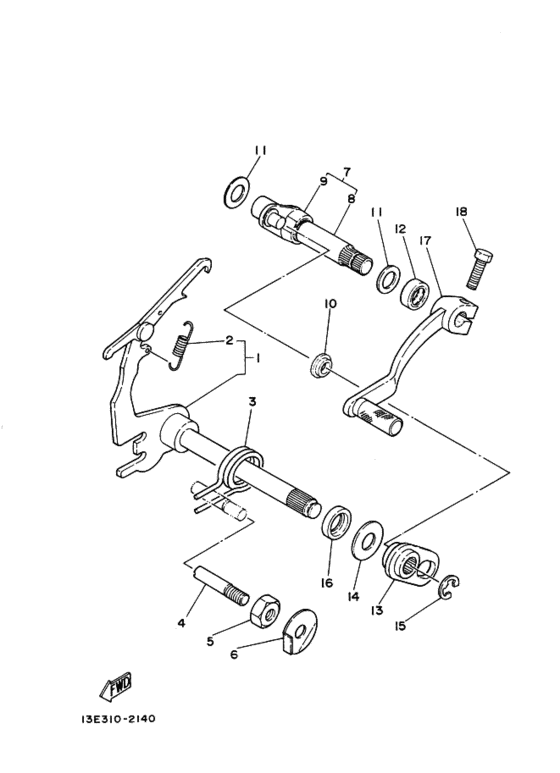

ｼﾌﾄｼﾔﾌﾄ. ﾍﾟﾀﾞﾙ Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-18101-01-00
Shift Shaft Assembly.1
|
525-18101-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
90506-09009-00 Spring, Tension．スプリング，テンシヨン; |
90506-09009-00 |
from US $2.55 |
||
|
3
|
3
90508-25273-00 Spring, Torsionスプリング，トーシヨン; |
90508-25273-00 |
from US $5.29 |
||
| replacement | |||||
|
3
|
3
90508-32054-00 Spring, Torsionスプリング，トーシヨン; |
90508-32054-00 |
from US $3.85 |
||
|
4
|
4
90149-08096-00
Screw, Spec''l Shape
|
90149-08096-00 |
— | ||
|
5
|
5
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
6
|
6
90215-08014-00 Washer, Lock |
90215-08014-00 |
from US $2.55 |
||
|
7
|
7
401-18102-00-00 Shift Shaft Assy 2 |
401-18102-00-00 |
US $104.85 |
||
| replacement | |||||
|
7
|
7
401-18102-02-00
Shift Shaft Assembly 2
|
401-18102-02-00 |
— | ||
|
8
|
8
401-18155-01-00
Shaft, Shift 2
．シヤフト，シフト ２; |
401-18155-01-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
．シヤフト，シフト ２; |
999-99999-99-00 |
— | ||
|
9
|
9
401-18151-00-00
Lever, Shift 3
．レバー，シフト ３; |
401-18151-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
．レバー，シフト ３; |
999-99999-99-00 |
— | ||
|
10
|
10
401-18178-00-00 Roller, Shift Leverローラ，シフトレバー; |
401-18178-00-00 |
from US $9.49 |
||
|
11
|
11
401-18334-00-00 Shim |
401-18334-00-00 |
from US $6.23 |
||
|
12
|
12
93109-12012-00 Oil Sealオイルシール; |
93109-12012-00 |
from US $10.87 |
||
|
13
|
13
401-18152-01-00 Lever, Shift 4レバー，シフト ４; |
401-18152-01-00 |
from US $33.01 |
||
|
14
|
14
90201-12575-00 Washer, Plate (353)ワツシヤ，プレート; |
90201-12575-00 |
from US $1.66 |
||
|
15
|
15
93430-08006-00 Circlipサークリツプ; |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
99001-08600-00 Circlipサークリツプ; |
99001-08600-00 |
from US $1.42 |
||
|
16
|
16
931-01120-60-00 Oil Sealオイルシール; |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
16
|
16
931-01121-73-00 Oil Sealオイルシール; |
931-01121-73-00 |
from US $4.64 |
||
|
17
|
17
525-18111-00-93
Pedal, Shift
クロムメツキ |
525-18111-00-93 |
— | ||
| replacement | |||||
|
17
|
17
525-18111-00-00
Pedal, Shift
クロムメツキ |
525-18111-00-00 |
— | ||
|
18
|
18
97321-06020-00 Bolt |
97321-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
