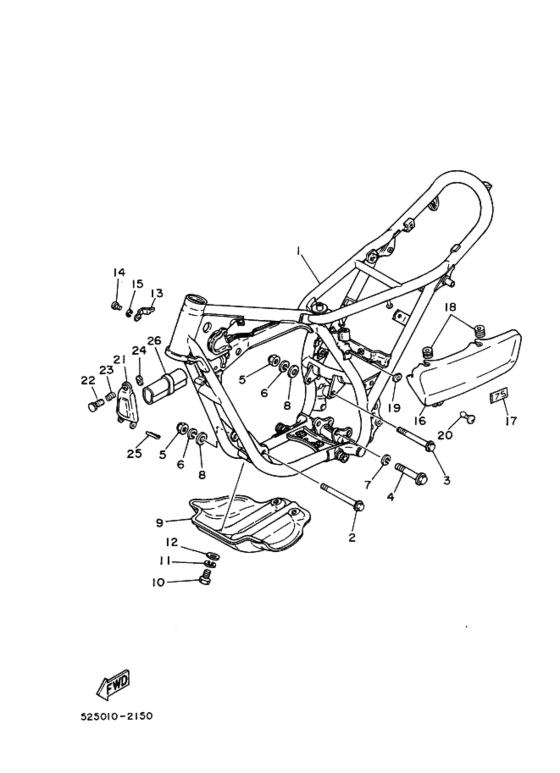

ﾌﾚｰﾑ. ｻｲﾄﾞｶﾊﾞｰ Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-21110-00-35
Frame
フレームコンプリート; シルバー |
525-21110-00-35 |
— | ||
|
2
|
2
90105-08024-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-08024-00 |
from US $5.10 |
||
|
3
|
3
90105-08120-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-08120-00 |
from US $7.51 |
||
| replacement | |||||
|
3
|
3
95817-08105-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
95817-08105-00 |
from US $7.79 |
||
|
4
|
4
90105-10037-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10037-00 |
from US $6.52 |
||
|
5
|
5
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
6
|
6
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
92901-10100-00 Washer, Springワツシヤ，スプリング; |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.34 |
||
|
8
|
8
90209-08050-00 Washer, Spec''l Shap |
90209-08050-00 |
from US $4.11 |
||
|
9
|
9
525-21471-00-39
Protector, Engine
クリヤ （バフナシ） |
525-21471-00-39 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
クリヤ （バフナシ） |
999-99999-99-00 |
— | ||
|
10
|
10
973-01080-18-00
Bolt, Hex
|
973-01080-18-00 |
— | ||
| replacement | |||||
|
10
|
10
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
11
|
11
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
12
|
12
929-01086-00-00
Washer
ワツシヤ，プレート; |
929-01086-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
13
|
13
90462-08022-00
Clamp
|
90462-08022-00 |
— | ||
|
14
|
14
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
15
|
15
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
1K6-21711-11-00
Cover, Side 1
カバー，サイド １; |
1K6-21711-11-00 |
— | ||
|
17
|
17
525-21787-20-00
Emblem 7
|
525-21787-20-00 |
— | ||
|
18
|
18
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
19
|
19
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
19
|
19
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $2.83 |
||
|
20
|
20
371-21714-00-00
Knob, Side Cover 1
ノブ，サイドカバー １; |
371-21714-00-00 |
— | ||
|
21
|
21
461-28171-00-00
Cover, Tool Box
カバー，ツールボツクス; |
461-28171-00-00 |
— | ||
|
22
|
22
434-28172-00-00
Knob, Tool Box
ノブ，ツールボツクス; |
434-28172-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
ノブ，ツールボツクス; |
999-99999-99-00 |
— | ||
|
23
|
23
90501-10187-00
Spring, Compression
|
90501-10187-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
90179-06034-00 Nut, Spec''l Shape (256-27218-0 |
90179-06034-00 |
from US $3.12 |
||
|
25
|
25
91401-30040-00 Pin,cotter |
91401-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
25
|
25
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
26
|
26
525-28100-00-00 Tool Kitツールキツト; |
525-28100-00-00 |
US $116.88 |
||
| replacement | |||||
|
26
|
26
2A6-W2810-00-00 Tool Kitツールキツト; |
2A6-W2810-00-00 |
from US $116.88 |
||
